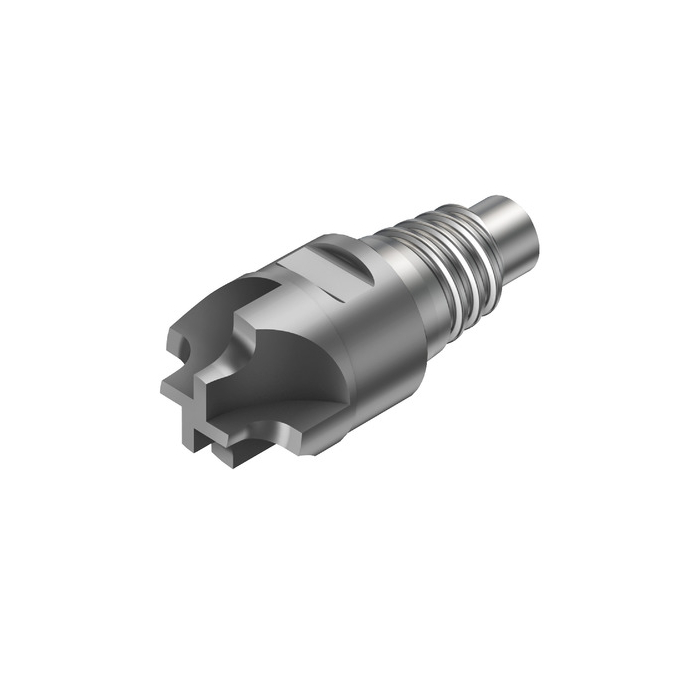

Sandvik Coromant 316-16UM400-16040G 1730 CoroMill™ 316 solid carbide head with quarter circle profile

Name: Sandvik Coromant 316-16UM400-16040G 1730 CoroMill™ 316 solid carbide head with quarter circle profile
SKU: 7611775
Price: 2793.35 ZAR
Availability: InStock

Be the first to review this product

R 2 793,35 inc. vat

In stock

SKU

7611775

CoroMill® 316 solid carbide head with quarter circle profile

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head with quarter circle profile

More Information

More Information
DCON - Connection Diameter	15.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	18.7mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.065kg
OAL - Overall Length	35.7mm
OHX - Maximum Overhang	18.7mm
APMX - Depth Of Cut Maximum	4mm
DC - Cutting Diameter	6mm
DN - Neck Diameter	15.5mm
GAMF - Radial Rake Angle	1deg
GAMP - Axial Rake Angle	0deg
DCX - Maximum Cutting Diameter	16mm
PRFRAD - Profile Radius	4mm
ORDCODE	316-16UM400-16040G 1730
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0160_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-22 16:09:00.000
Hand	R
Grade	1730
COATING	PVD AlTiN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
