Sandvik Coromant 862.1-2000-180A0-GM X2BL CoroDrill® 862-GM Solid carbide micro drill

R 1 812,40 inc. vat
In stock
SKU
8172880

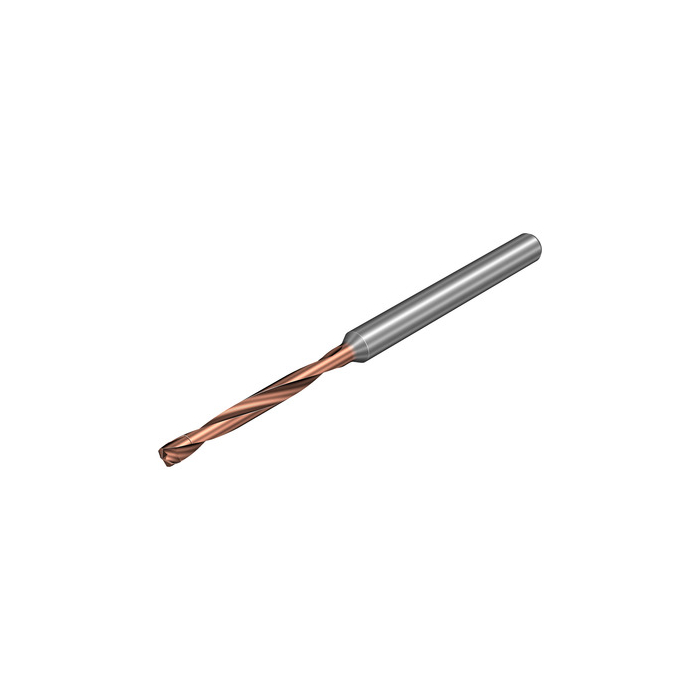

CoroDrill® 862-GM Solid carbide micro drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 862-GM Solid carbide micro drill
More Information
DCON - Connection Diameter 3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 54.64mm
RPMX - Rotational Speed Maximum 254651/min
WT - Weight Of Item 0.006kg
OAL - Overall Length 55mm
OHX - Maximum Overhang 22.9mm
GAMO - Orthogonal Rake Angle 20.45deg
LU - Usable Length 18mm
DC - Cutting Diameter 2mm
FHA - Flute Helix Angle 30deg
ULDR - Usable Length Diameter Ratio 9
PL - Point Length 0.36397mm
LCF - Chip Flute Length 22mm
SIG - Point Angle 140deg
ORDCODE 862.1-2000-180A0-GM X2BL
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F3000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-09-06 14:06:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade X2BL
COATING PVD TiAlSiN
SUBSTRATE HC
TCHA - Achievable Hole Tolerance H7
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
