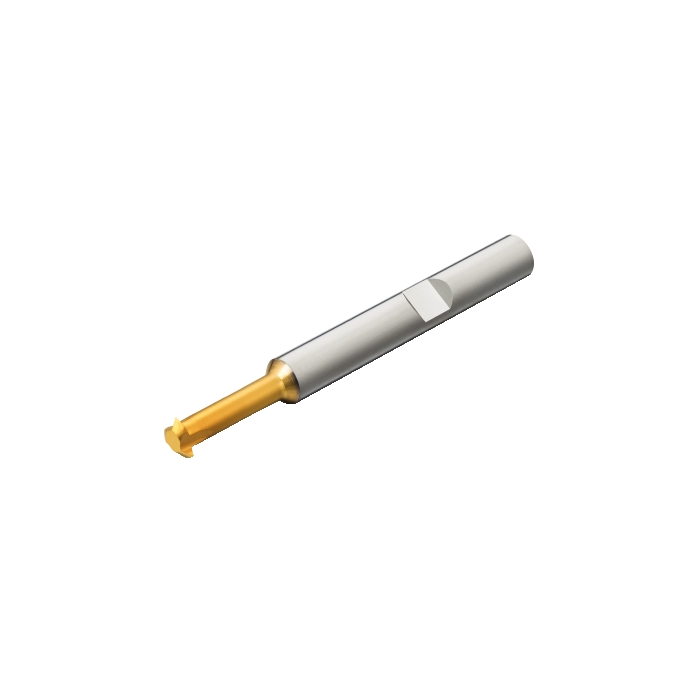

Sandvik Coromant 326R06-B15050VM-TH 1025 CoroMill™ 326 solid carbide end mill for thread milling
R 1 118,95
inc. vat
In stock
SKU
6010076
CoroMill® 326 solid carbide end mill for thread milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 326 solid carbide end mill for thread milling
| DCON - Connection Diameter | 6mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 58mm |
| BD - Body Diameter | 3.5mm |
| LB - Body Length | 22mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 800001/min |
| WT - Weight Of Item | 0.028kg |
| OAL - Overall Length | 58mm |
| OHX - Maximum Overhang | 22mm |
| LSC - Clamping Length | 36mm |
| RE - Corner Radius | 0mm |
| H - Shank Height | 4.8mm |
| LPR - Protruding Length | 58mm |
| LU - Usable Length | 15mm |
| MHD - Mounting Hole Distance | 18mm |
| APMX - Depth Of Cut Maximum | 1.94mm |
| TPN - Minimum Thread Pitch | 0.5mm |
| TPX - Maximum Thread Pitch | 1.5mm |
| TPIN - Minimum Threads Per Inch | 16 |
| TPIX - Maximum Threads Per Inch | 50 |
| HA - Theoretical Thread Height | 0.97mm |
| HB - Thread Height Difference | 0.06mm |
| CF - Spot Chamfer | 0.06mm |
| TG - Taper Gradient | 0 |
| DC - Cutting Diameter | 5.8mm |
| DN - Neck Diameter | 3.5mm |
| FHA - Flute Helix Angle | 0deg |
| GAMF - Radial Rake Angle | 5deg |
| GAMP - Axial Rake Angle | 1.5deg |
| ORDCODE | 326R06-B15050VM-TH 1025 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLW_F6000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-12-21 01:03:00.000 |
| STDLET - Standard Letter | WE |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1025 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| THFT - Thread Form Type | VP60 |
| TPT - Thread Profile Type | P |
| TTP - Thread Type | INT |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 3 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
