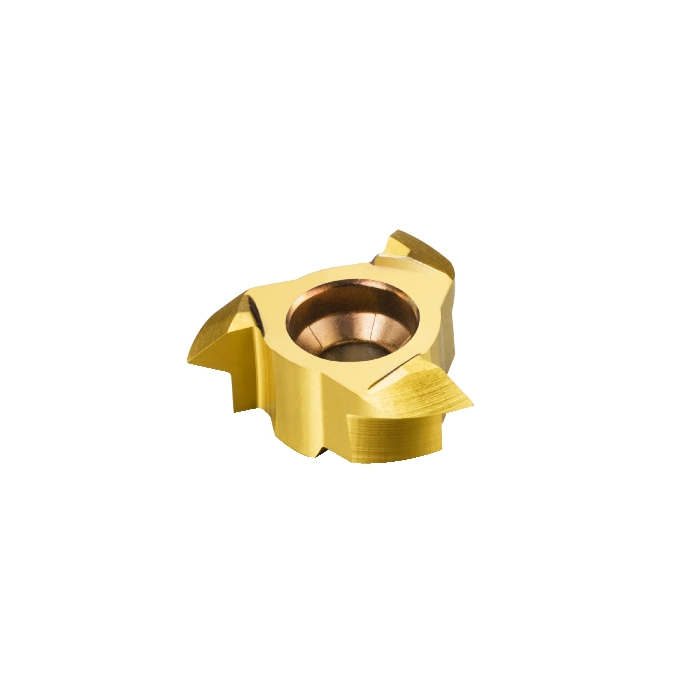

Sandvik Coromant 327R09-18 100VM-TH 1025 CoroMill™ 327 solid carbide head for thread milling

Name: Sandvik Coromant 327R09-18 100VM-TH 1025 CoroMill™ 327 solid carbide head for thread milling
SKU: 5758656
Price: 1140.80 ZAR
Availability: InStock

Be the first to review this product

R 1 140,80 inc. vat

In stock

SKU

5758656

CoroMill® 327 solid carbide head for thread milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 327 solid carbide head for thread milling

More Information

More Information
DCON - Connection Diameter	9mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	4.7mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	6.4g
OAL - Overall Length	5.85mm
OHX - Maximum Overhang	5.85mm
RE - Corner Radius	0mm
LPR - Protruding Length	5.85mm
LU - Usable Length	5mm
APMX - Depth Of Cut Maximum	1.2mm
TPN - Minimum Thread Pitch	1mm
TPX - Maximum Thread Pitch	2mm
TPIN - Minimum Threads Per Inch	12
TPIX - Maximum Threads Per Inch	24
HA - Theoretical Thread Height	1.37mm
HB - Thread Height Difference	0.12mm
CF - Spot Chamfer	0.12mm
TG - Taper Gradient	0
DC - Cutting Diameter	17.7mm
FHA - Flute Helix Angle	0deg
GAMF - Radial Rake Angle	5deg
GAMP - Axial Rake Angle	1.5deg
ORDCODE	327R09-18 100VM-TH 1025
ADINTMS - Adaptive Interface Machine Direction	M_CM3271_C0090_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-06-23 11:41:00.000
Hand	R
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
THFT - Thread Form Type	VP60
TPT - Thread Profile Type	P
TTP - Thread Type	INT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
