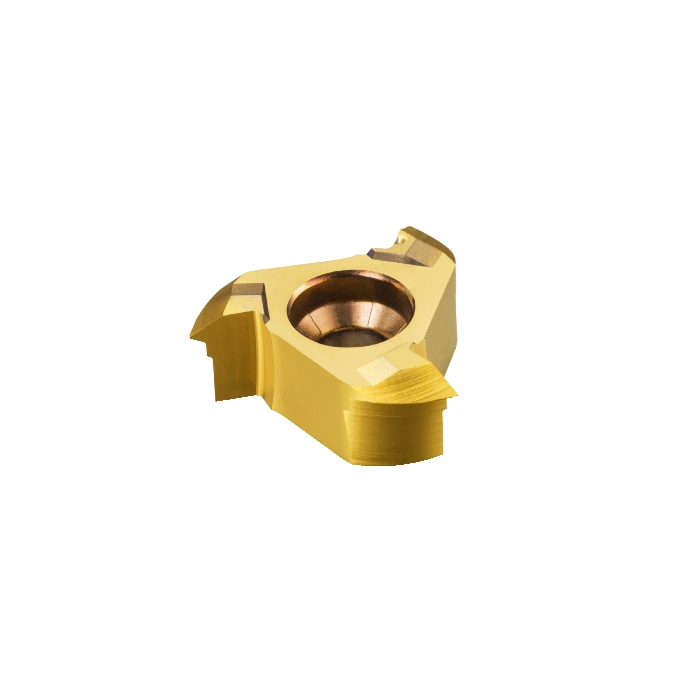

Sandvik Coromant 327R12-22 350MM-TH 1025 CoroMill™ 327 solid carbide head for thread milling
R 1 452,45
inc. vat
In stock
SKU
5758663
CoroMill® 327 solid carbide head for thread milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 327 solid carbide head for thread milling
| DCON - Connection Diameter | 12mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 5.85mm |
| BD - Body Diameter | 17.92mm |
| LB - Body Length | 4.1mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 800001/min |
| WT - Weight Of Item | 0.01kg |
| OAL - Overall Length | 5.85mm |
| OHX - Maximum Overhang | 5.85mm |
| KAPR - Tool Cutting Edge Angle | 30deg |
| LU - Usable Length | 5.85mm |
| APMX - Depth Of Cut Maximum | 1.89mm |
| TP - Thread Pitch | 3.5mm |
| TG - Taper Gradient | 0 |
| DC - Cutting Diameter | 21.7mm |
| DN - Neck Diameter | 17.92mm |
| FHA - Flute Helix Angle | 0deg |
| GAMF - Radial Rake Angle | 5deg |
| ORDCODE | 327R12-22 350MM-TH 1025 |
| ADINTMS - Adaptive Interface Machine Direction | M_CM3271_C0120_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-06-23 11:41:00.000 |
| Hand | R |
| Grade | 1025 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| THFT - Thread Form Type | M60 |
| TPT - Thread Profile Type | F |
| TTP - Thread Type | INT |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 3 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
