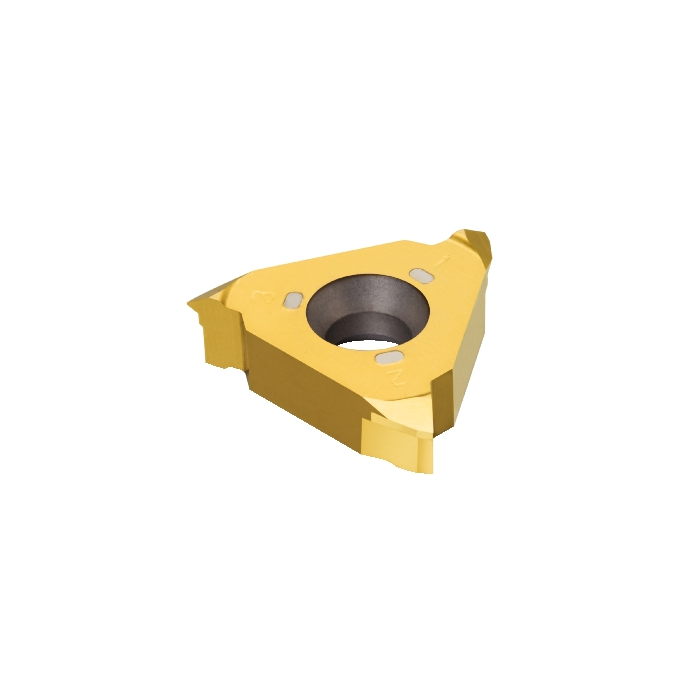

Sandvik Coromant 328R13-550 MM-TH 1025 CoroMill™ 328 insert for thread milling

R 1 385,75 inc. vat
In stock
SKU
6010146
CoroMill® 328 insert for thread milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 328 insert for thread milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 12.8g
AN - Clearance Angle Major 6deg
Insert Thickness 5.85mm
D1 - Fixing Hole Diameter 5.6mm
HA - Theoretical Thread Height 3.57mm
HB - Thread Height Difference 0.6mm
CF - Spot Chamfer 0.688mm
TP - Thread Pitch 5.5mm
PDX - Profile Distance Ex 2.3mm
PDY - Profile Distance Ey 0mm
ORDCODE 328R13-550 MM-TH 1025
CHANGEDATE 2022-09-23 18:09:00.000
STDNO - Standard Number ISO 965-1998
Hand R
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code 13
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_MV13_1
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
THFT - Thread Form Type M60
TPT - Thread Profile Type F
TTP - Thread Type INT
TCTR - Thread Tolerance Class IT 6
CEDC - Cutting Edge Count 3
NT - Tooth Count 1
