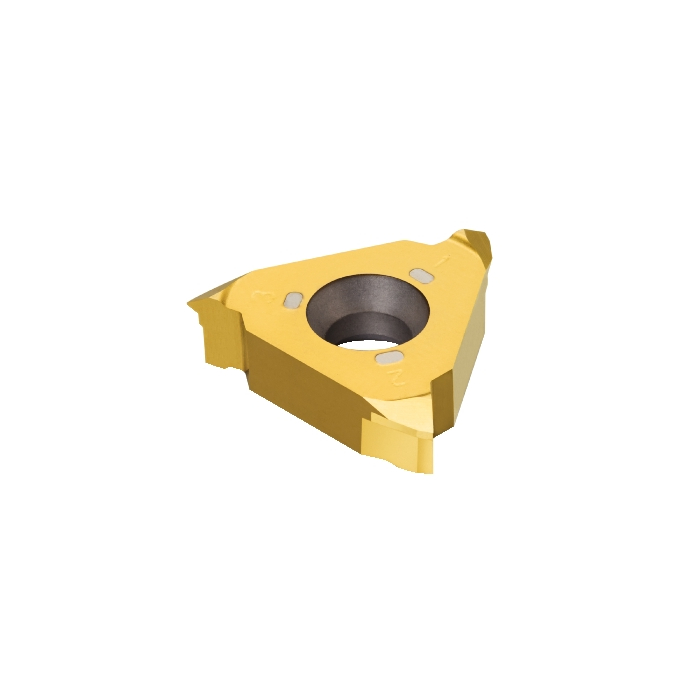

Sandvik Coromant 328R13-600 MM-TH 1025 CoroMill™ 328 insert for thread milling
R 1 385,75
inc. vat
In stock
SKU
6010147
CoroMill® 328 insert for thread milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 328 insert for thread milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 15.7g |
| AN - Clearance Angle Major | 6deg |
| Insert Thickness | 7.6mm |
| D1 - Fixing Hole Diameter | 5.6mm |
| HA - Theoretical Thread Height | 3.9mm |
| HB - Thread Height Difference | 0.65mm |
| CF - Spot Chamfer | 0.75mm |
| TP - Thread Pitch | 6mm |
| PDX - Profile Distance Ex | 2.45mm |
| PDY - Profile Distance Ey | 0mm |
| ORDCODE | 328R13-600 MM-TH 1025 |
| CHANGEDATE | 2022-09-23 18:09:00.000 |
| STDNO - Standard Number | ISO 965-1998 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 13 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MV13_1 |
| Grade | 1025 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| THFT - Thread Form Type | M60 |
| TPT - Thread Profile Type | F |
| TTP - Thread Type | INT |
| TCTR - Thread Tolerance Class | IT 6 |
| CEDC - Cutting Edge Count | 3 |
| NT - Tooth Count | 1 |
