R 319,70
inc. vat
In stock
SKU
7029215

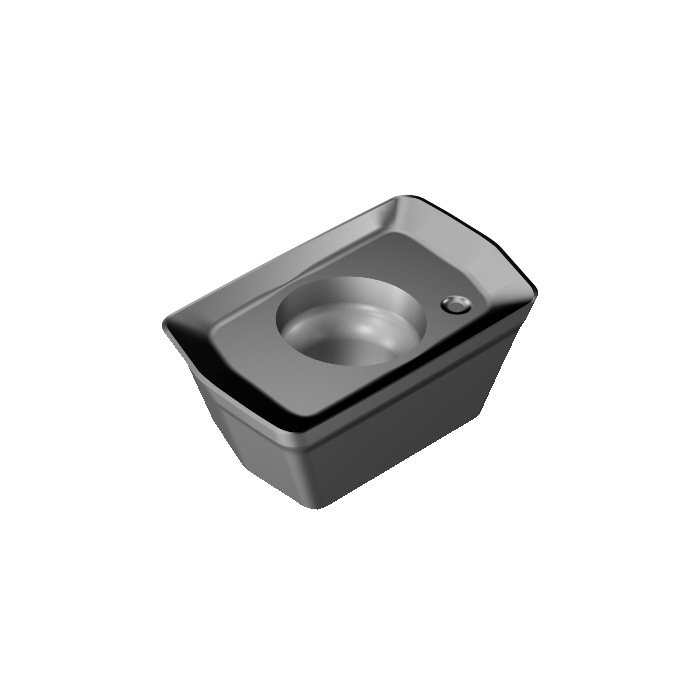

CoroMill® 390 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 1g |
AN - Clearance Angle Major | 18deg |
RE - Corner Radius | 0.2mm |
Insert Thickness | 2.4mm |
D1 - Fixing Hole Diameter | 2.05mm |
LE - Cutting Edge Effective Length | 5.9mm |
L - Cutting Edge Length | 6.92mm |
KRINS - Major Cutting Edge Angle | 90deg |
BS - Wiper Edge Length | 0.7mm |
GAN - Insert Rake Angle | 30deg |
APMX - Depth Of Cut Maximum | 5.8mm |
W1 - Insert Width | 4.06mm |
ORDCODE | 390R-070202E-ML 1040 |
CHANGEDATE | 2022-09-23 20:23:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 07 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MH0702_1 |
Grade | 1040 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | ML |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | True |
