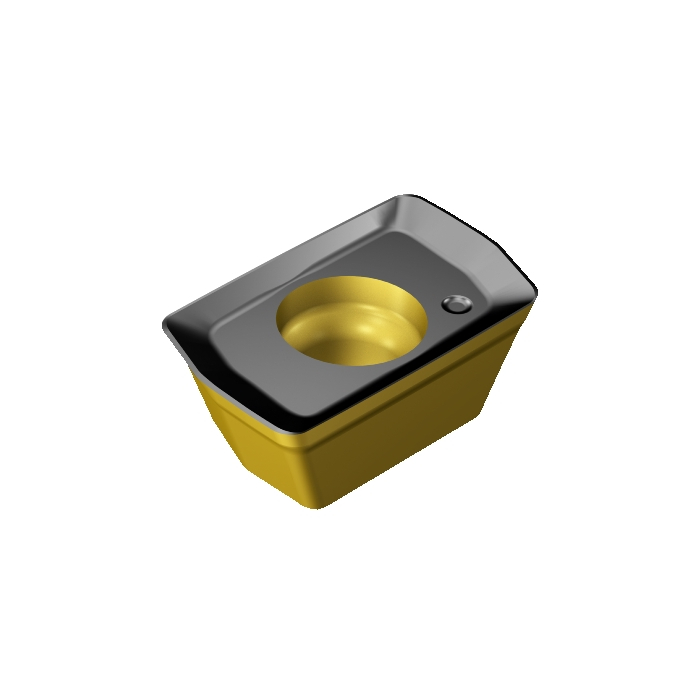

Sandvik Coromant 390R-070204M-KM 3330 CoroMill™ 390 insert for milling
R 255,30
inc. vat
In stock
SKU
6851170
CoroMill® 390 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.5g |
| AN - Clearance Angle Major | 18deg |
| RE - Corner Radius | 0.4mm |
| Insert Thickness | 2.4mm |
| D1 - Fixing Hole Diameter | 2.05mm |
| LE - Cutting Edge Effective Length | 5.9mm |
| L - Cutting Edge Length | 6.92mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 0.7mm |
| GAN - Insert Rake Angle | 30deg |
| APMX - Depth Of Cut Maximum | 5.8mm |
| W1 - Insert Width | 4.06mm |
| ORDCODE | 390R-070204M-KM 3330 |
| CHANGEDATE | 2022-09-23 19:31:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 07 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MH0702_1 |
| Grade | 3330 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | KM |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
