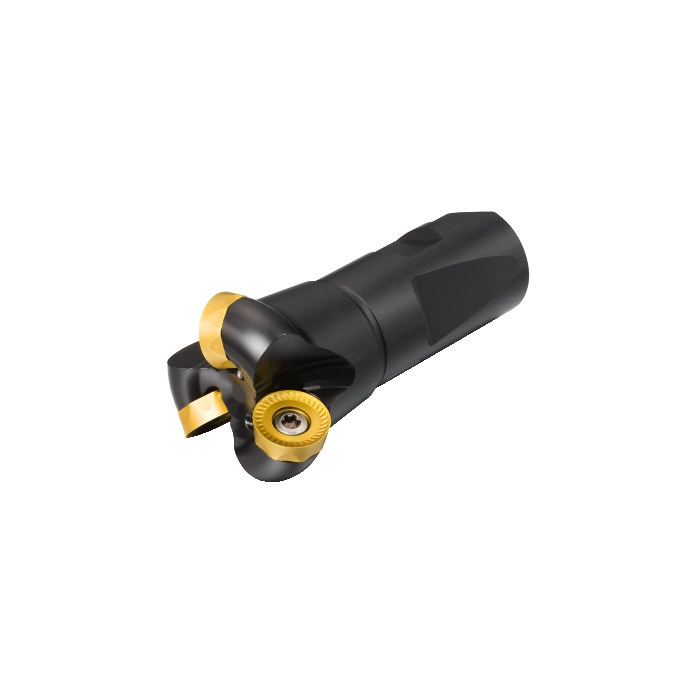

Sandvik Coromant RA200-038MN32-13M CoroMill™ 200 face milling cutter
R 7 860,25
inc. vat
In stock
SKU
5739060
CoroMill® 200 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 face milling cutter
| DCON - Connection Diameter | 31.75mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 102mm |
| BD - Body Diameter | 50.8mm |
| LB - Body Length | 28.575mm |
| TQ - Torque | 3Nm |
| RPMX - Rotational Speed Maximum | 225001/min |
| WT - Weight Of Item | 0.68kg |
| OAL - Overall Length | 102mm |
| OHX - Maximum Overhang | 42mm |
| RMPX - Maximum Ramping Angle | 6deg |
| GAMO - Orthogonal Rake Angle | -7deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 6.35mm |
| Insert Thickness | 4.7625mm |
| H - Shank Height | 29.36mm |
| APMX - Depth Of Cut Maximum | 6.35mm |
| DC - Cutting Diameter | 38.1mm |
| DCF - Cutting Diameter Face Contact | 38.1mm |
| GAMF - Radial Rake Angle | 0deg |
| GAMP - Axial Rake Angle | -6.99999995deg |
| DCX - Maximum Cutting Diameter | 50.8mm |
| AZ - Maximum Plunge Depth | 3.5mm |
| ORDCODE | RA200-038MN32-13M |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLWNW_S1250_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 14:43:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RC1304_2 |
| Hand | R |
| MIID - Master Insert Identification | RCKT 13 04 00 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 13 |
| TCDCON - Connection Diameter Tolerance | h6 |
| CICT - Cutting Item Count | 4 |
| ZEFP - Peripheral Effective Cutting Edge Count | 4 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
