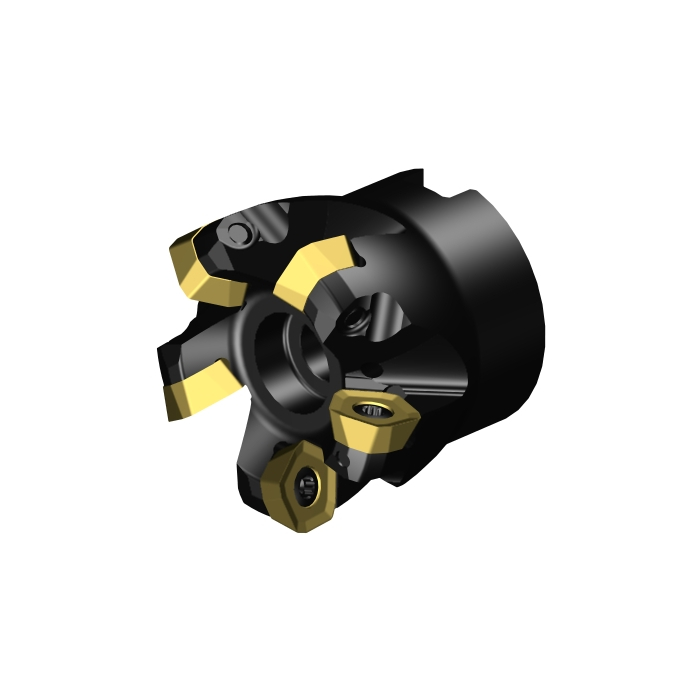

Sandvik Coromant 419-054Q22-14H CoroMill™ 419 face milling cutter

Name: Sandvik Coromant 419-054Q22-14H CoroMill™ 419 face milling cutter
SKU: 6449362
Price: 10167.15 ZAR
Availability: InStock

R 10 167,15 inc. vat

In stock

SKU

6449362

CoroMill® 419 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 419 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	22mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	45mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	168001/min
WT - Weight Of Item	341g
OAL - Overall Length	45mm
OHX - Maximum Overhang	45mm
KAPR - Tool Cutting Edge Angle	19deg
RMPX - Maximum Ramping Angle	8deg
GAMO - Orthogonal Rake Angle	10deg
LAMS - Inclination Angle	-1deg
AN - Clearance Angle Major	15deg
IC - Inscribed Circle Diameter	13.5mm
Insert Thickness	5.47mm
APMX - Depth Of Cut Maximum	2mm
DC - Cutting Diameter	39.4mm
DCF - Cutting Diameter Face Contact	39.4mm
DN - Neck Diameter	43mm
GAMF - Radial Rake Angle	4.22707556deg
GAMP - Axial Rake Angle	9.14823504deg
DCX - Maximum Cutting Diameter	54mm
AZ - Maximum Plunge Depth	2mm
ORDCODE	419-054Q22-14H
ADINTMS - Adaptive Interface Machine Direction	M_FDA1A1_G2200_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:10:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NJ1405_1
Hand	R
MIID - Master Insert Identification	419R-1405
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	P
SSC - Insert Seat Size Code	14
CICT - Cutting Item Count	5
ZEFP - Peripheral Effective Cutting Edge Count	5
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
