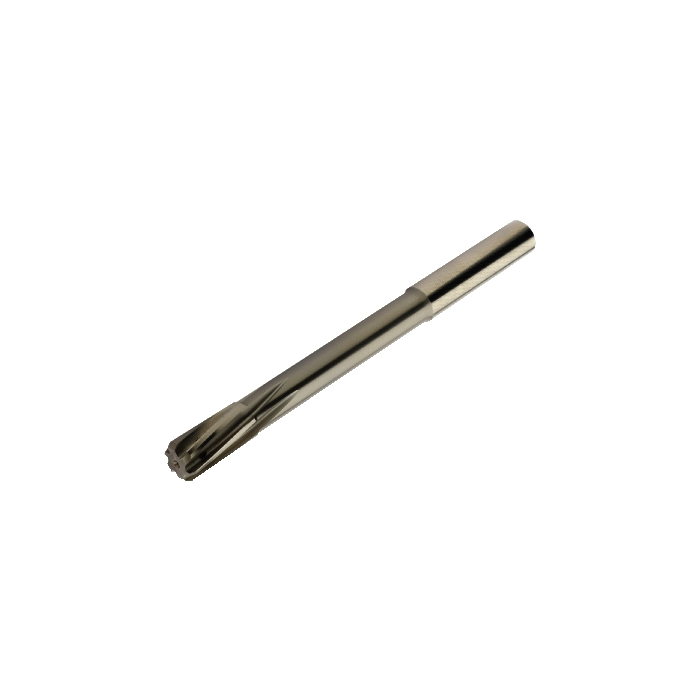

Sandvik Coromant 435.T-0500-A1-XF H10F CoroReamer® 435 solid carbide reamer

Name: Sandvik Coromant 435.T-0500-A1-XF H10F CoroReamer® 435 solid carbide reamer
SKU: 6266828
Price: 2802.55 ZAR
Availability: InStock

Be the first to review this product

R 2 802,55 inc. vat

In stock

SKU

6266828

CoroReamer™ 435 solid carbide reamer

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroReamer™ 435 solid carbide reamer

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	74.25mm
RPMX - Rotational Speed Maximum	61121/min
WT - Weight Of Item	0.035kg
OAL - Overall Length	75mm
OHX - Maximum Overhang	38.25mm
LU - Usable Length	39mm
L - Cutting Edge Length	12mm
APMX - Depth Of Cut Maximum	0.3mm
TG - Taper Gradient	0
DC - Cutting Diameter	5mm
DN - Neck Diameter	3.9mm
FHA - Flute Helix Angle	10deg
TCHAL - Achievable Hole Tolerance Lower	0mm
TCHAU - Achievable Hole Tolerance Upper	0.012mm
LCF - Chip Flute Length	15.6mm
PHD - Premachined Hole Diameter	4.8mm
PLGL - Plug Length	0.75mm
ORDCODE	435.T-0500-A1-XF H10F
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 13:01:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	H10F
SUBSTRATE	HF
BSG - Basic Standard Group	COROMANT
TCHA - Achievable Hole Tolerance	H7
ZEFP - Peripheral Effective Cutting Edge Count	4
NOF - Flute Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
