Sandvik Coromant 452.1-0250-044A0-C H10F CoroDrill® 452 solid carbide drill
R 801,55
inc. vat
In stock
SKU
6019133

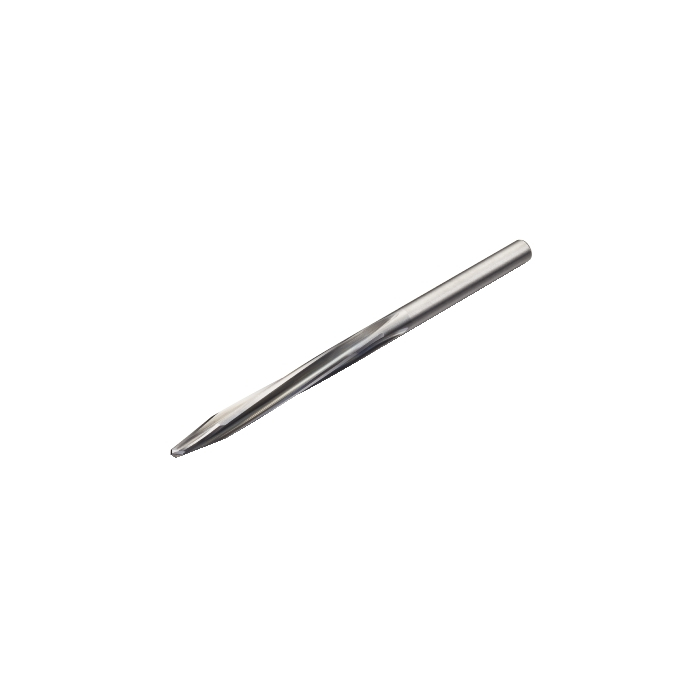

CoroDrill® 452 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 452 solid carbide drill
| DCON - Connection Diameter | 2.5mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 96.06mm |
| BD - Body Diameter | 2.495mm |
| LB - Body Length | 56.337mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 500001/min |
| WT - Weight Of Item | 0.011kg |
| OAL - Overall Length | 101.6mm |
| OHX - Maximum Overhang | 50.8mm |
| LSC - Clamping Length | 46.259mm |
| GAMO - Orthogonal Rake Angle | 3.34deg |
| LU - Usable Length | 49.99mm |
| DC - Cutting Diameter | 2.495mm |
| FHA - Flute Helix Angle | 5deg |
| ULDR - Usable Length Diameter Ratio | 20.036072144289 |
| PL - Point Length | 5.537mm |
| LCF - Chip Flute Length | 56.337mm |
| SIG - Point Angle | 118deg |
| ORDCODE | 452.1-0250-044A0-C H10F |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_F2500_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-12-21 11:41:00.000 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h8 |
| Grade | H10F |
| SUBSTRATE | HF |
| BSG - Basic Standard Group | COROMANT |
| TCHA - Achievable Hole Tolerance | K8 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
