R 1 332,85
inc. vat
In stock
SKU
6010891
CoroDrill® 452 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days

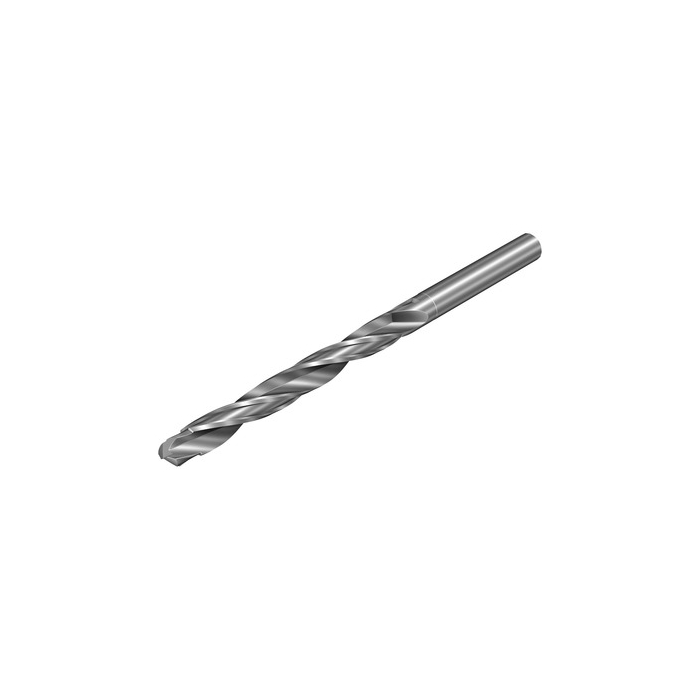

CoroDrill® 452 solid carbide drill
DCON - Connection Diameter | 7.9375mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 90.51mm |
LB - Body Length | 52.132mm |
RPMX - Rotational Speed Maximum | 60001/min |
WT - Weight Of Item | 0.065kg |
OAL - Overall Length | 101.6mm |
OHX - Maximum Overhang | 39.8mm |
LSC - Clamping Length | 50.8mm |
GAMO - Orthogonal Rake Angle | 13.46deg |
LU - Usable Length | 44.45mm |
DC - Cutting Diameter | 7.94mm |
FHA - Flute Helix Angle | 20deg |
ULDR - Usable Length Diameter Ratio | 5.598236775819 |
PL - Point Length | 1.48mm |
LCF - Chip Flute Length | 50.8mm |
SIG - Point Angle | 135deg |
PDD - Pilot Drill Diameter | 7.146mm |
PDP - Pilot Drill Protrusion | 9.525mm |
ORDCODE | 452.4-0794-034A0-CM H10F |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R3125_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-09-22 16:52:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h7 |
Grade | H10F |
SUBSTRATE | HF |
BSG - Basic Standard Group | COROMANT |
TCHA - Achievable Hole Tolerance | K8 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
