Sandvik Coromant 452.1-0556-044A0-C H10F CoroDrill® 452 solid carbide drill
R 842,95
inc. vat
In stock
SKU
6010875

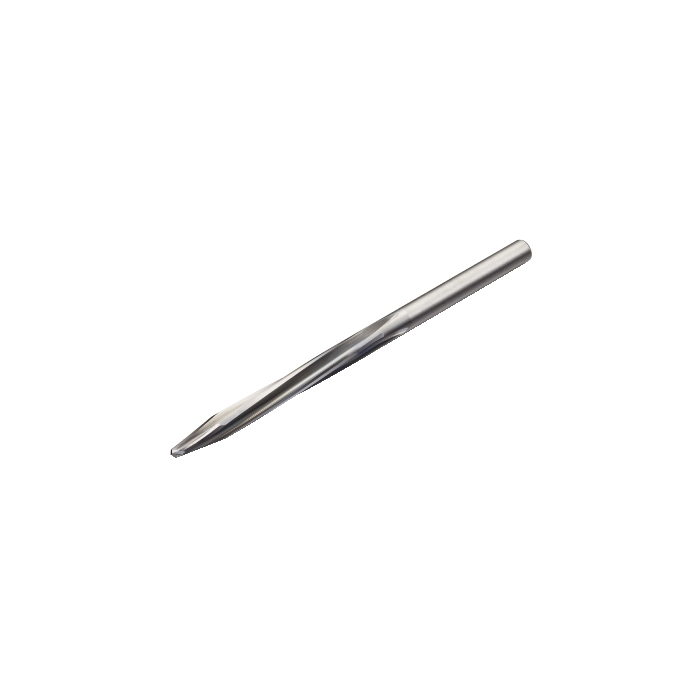

CoroDrill® 452 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 452 solid carbide drill
| DCON - Connection Diameter | 5.55625mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 89.28mm |
| BD - Body Diameter | 5.557mm |
| LB - Body Length | 63.12mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 500001/min |
| WT - Weight Of Item | 0.03kg |
| OAL - Overall Length | 101.6mm |
| OHX - Maximum Overhang | 50.8mm |
| LSC - Clamping Length | 38.47mm |
| GAMO - Orthogonal Rake Angle | 3.34deg |
| LU - Usable Length | 56.77mm |
| DC - Cutting Diameter | 5.557mm |
| FHA - Flute Helix Angle | 5deg |
| ULDR - Usable Length Diameter Ratio | 10.215943854598 |
| PL - Point Length | 12.32mm |
| LCF - Chip Flute Length | 63.12mm |
| SIG - Point Angle | 118deg |
| ORDCODE | 452.1-0556-044A0-C H10F |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R2187_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-09-28 09:49:00.000 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h8 |
| Grade | H10F |
| SUBSTRATE | HF |
| BSG - Basic Standard Group | COROMANT |
| TCHA - Achievable Hole Tolerance | K8 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
