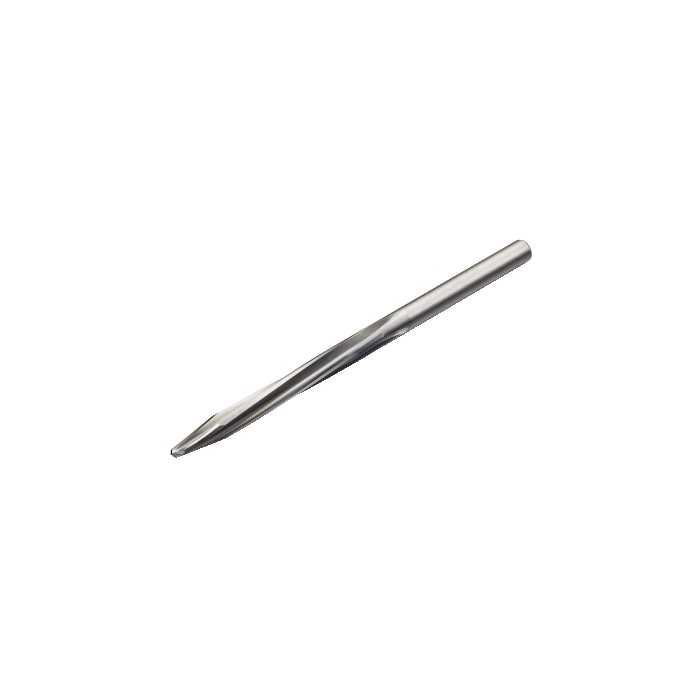

Sandvik Coromant 452.1-0794-044A0-CM H10F CoroDrill® 452 solid carbide drill
Next
Sandvik Coromant 452.1-0635-044A0-CM H10F CoroDrill® 452 solid carbide drill
Previous
![Sandvik Coromant 452.1-0794-044A0-CM H10F CoroDrill® 452 solid carbide drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/740037c7a/sandvik-coromant-452-1-0794-044a0-cm-h10f-corodrillr-452-solid-carbide-drill.jpg)
![Sandvik Coromant 452.1-0635-044A0-CM H10F CoroDrill® 452 solid carbide drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/740011d74/sandvik-coromant-452-1-0635-044a0-cm-h10f-corodrillr-452-solid-carbide-drill.jpg)
R 943,00
inc. vat
In stock
SKU
6010879
CoroDrill® 452 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 452 solid carbide drill
DCON - Connection Diameter | 7.9375mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 83.97mm |
BD - Body Diameter | 7.94mm |
LB - Body Length | 68.43mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 500001/min |
WT - Weight Of Item | 0.06kg |
OAL - Overall Length | 101.6mm |
OHX - Maximum Overhang | 50.8mm |
LSC - Clamping Length | 33.183mm |
GAMO - Orthogonal Rake Angle | 3.34deg |
LU - Usable Length | 62.08mm |
DC - Cutting Diameter | 7.94mm |
FHA - Flute Helix Angle | 5deg |
ULDR - Usable Length Diameter Ratio | 7.818639798489 |
PL - Point Length | 17.628mm |
LCF - Chip Flute Length | 68.43mm |
SIG - Point Angle | 118deg |
ORDCODE | 452.1-0794-044A0-C H10F |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R3125_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-09-28 09:33:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h7 |
Grade | H10F |
SUBSTRATE | HF |
BSG - Basic Standard Group | COROMANT |
TCHA - Achievable Hole Tolerance | K8 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
