Sandvik Coromant 460.2-0930-028A1-XM GC34 CoroDrill® 460 solid carbide step and chamfer drill
R 5 483,20
inc. vat
Out of stock
SKU
6762664

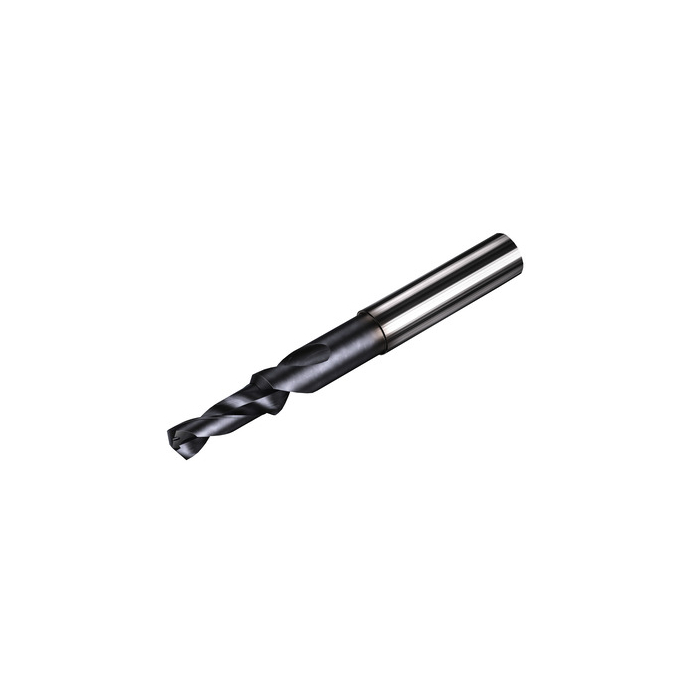

CoroDrill® 460 solid carbide step and chamfer drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 460 solid carbide step and chamfer drill
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 14mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 110.6mm |
| RPMX - Rotational Speed Maximum | 102681/min |
| WT - Weight Of Item | 0.193kg |
| OAL - Overall Length | 112mm |
| OHX - Maximum Overhang | 65.6mm |
| GAMO - Orthogonal Rake Angle | 14.15deg |
| LU - Usable Length | 29.4mm |
| DC - Cutting Diameter | 12.56mm |
| FHA - Flute Helix Angle | 21deg |
| PL - Point Length | 1.4mm |
| LCF - Chip Flute Length | 50mm |
| SIG - Point Angle | 140deg |
| SDL - Step Diameter Length | 26.4mm |
| STA - Step Included Angle | 90deg |
| ORDCODE | 460.2-0930-028A1-XM GC34 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1400_1 |
| CNSC - Coolant Entry Style Code | 4 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-11-11 16:32:00.000 |
| STDLET - Standard Letter | HA |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | GC34 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | COROMANT |
| TCHA - Achievable Hole Tolerance | H9 |
| ZEFP - Peripheral Effective Cutting Edge Count | 2 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
