Product added to cart

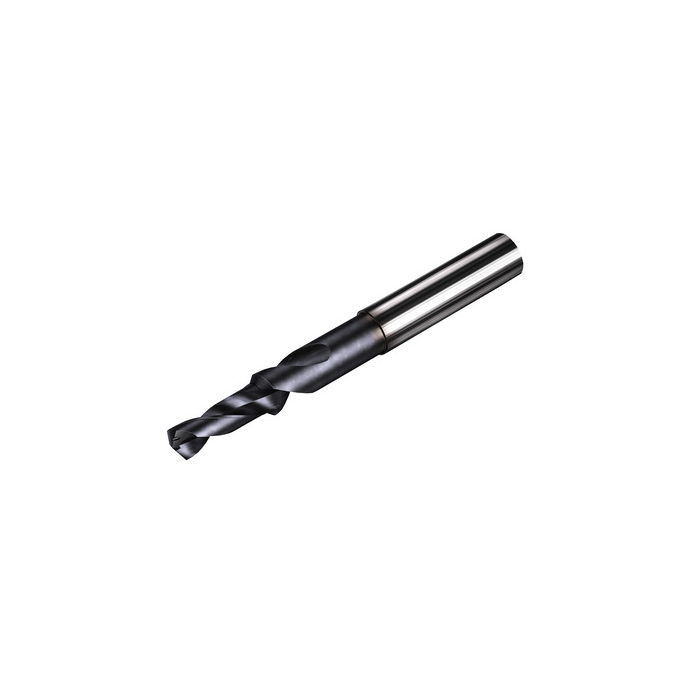

Sandvik Coromant 460.2-1050-032A1-XM GC34 CoroDrill® 460 solid carbide step and chamfer drill
Next
Sandvik Coromant 460.2-0930-028A1-XM GC34 CoroDrill® 460 solid carbide step and chamfer drill
Previous
![Sandvik Coromant 460.2-1050-032A1-XM GC34 CoroDrill® 460 solid carbide step and chamfer drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/76298dc91/sandvik-coromant-460-2-1050-032a1-xm-gc34-corodrillr-460-solid-carbide-step-and-chamfer-drill.jpg)
![Sandvik Coromant 460.2-0930-028A1-XM GC34 CoroDrill® 460 solid carbide step and chamfer drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/76296ca4d/sandvik-coromant-460-2-0930-028a1-xm-gc34-corodrillr-460-solid-carbide-step-and-chamfer-drill.jpg)
R 5 483,20
inc. vat
In stock
SKU
6762665
CoroDrill® 460 solid carbide step and chamfer drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 460 solid carbide step and chamfer drill
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 14mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 110.5mm |
RPMX - Rotational Speed Maximum | 93161/min |
WT - Weight Of Item | 0.18kg |
OAL - Overall Length | 112mm |
OHX - Maximum Overhang | 65.5mm |
GAMO - Orthogonal Rake Angle | 15.46deg |
LU - Usable Length | 32.5mm |
DC - Cutting Diameter | 13.84mm |
FHA - Flute Helix Angle | 22.9deg |
PL - Point Length | 1.5mm |
LCF - Chip Flute Length | 55mm |
SIG - Point Angle | 140deg |
SDL - Step Diameter Length | 29.2mm |
STA - Step Included Angle | 90deg |
ORDCODE | 460.2-1025-031A1-XM GC34 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1400_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 4 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-11-11 16:32:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | GC34 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
TCHA - Achievable Hole Tolerance | H9 |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
