R 11 505,75
inc. vat
In stock
SKU
5829343
CoroMill® 490 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days

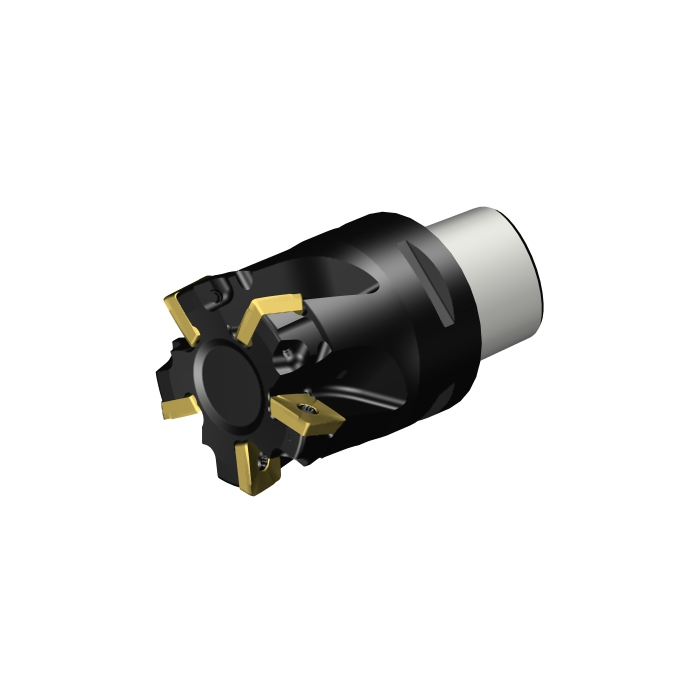

CoroMill® 490 square shoulder milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DFC - Functional Diameter | 35mm |
DCON - Connection Diameter | 50mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 60mm |
LB - Body Length | 60mm |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 213001/min |
WT - Weight Of Item | 858g |
OAL - Overall Length | 90mm |
OHX - Maximum Overhang | 60mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 0deg |
GAMO - Orthogonal Rake Angle | 15deg |
LAMS - Inclination Angle | 16deg |
IC - Inscribed Circle Diameter | 13.8mm |
Insert Thickness | 3.9mm |
APMX - Depth Of Cut Maximum | 10mm |
DC - Cutting Diameter | 54mm |
DCF - Cutting Diameter Face Contact | 52.4mm |
GAMF - Radial Rake Angle | 14.99999987deg |
GAMP - Axial Rake Angle | 16.00000022deg |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | 490-054C5-14H |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:01:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MI1404_1 |
Hand | R |
MIID - Master Insert Identification | 490R-1404 |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 14 |
CICT - Cutting Item Count | 5 |
ZEFP - Peripheral Effective Cutting Edge Count | 5 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
