R 322,00
inc. vat
In stock
SKU
5762312

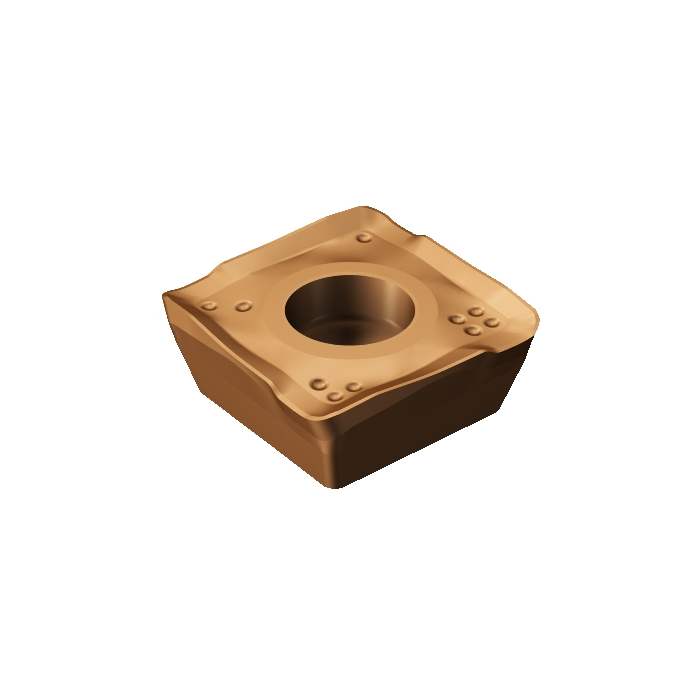

CoroMill® 490 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 490 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 2.3g |
AN - Clearance Angle Major | 15deg |
IC - Inscribed Circle Diameter | 8.5mm |
RE - Corner Radius | 1.6mm |
Insert Thickness | 3.3mm |
D1 - Fixing Hole Diameter | 2.8mm |
LE - Cutting Edge Effective Length | 5.6mm |
L - Cutting Edge Length | 8.5mm |
KRINS - Major Cutting Edge Angle | 90deg |
BS - Wiper Edge Length | 0.6mm |
APMX - Depth Of Cut Maximum | 5.5mm |
ORDCODE | 490R-08T316M-KH 1020 |
CHANGEDATE | 2022-09-23 17:45:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 08 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MI08T3_1 |
Grade | 1020 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | KH |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | True |
