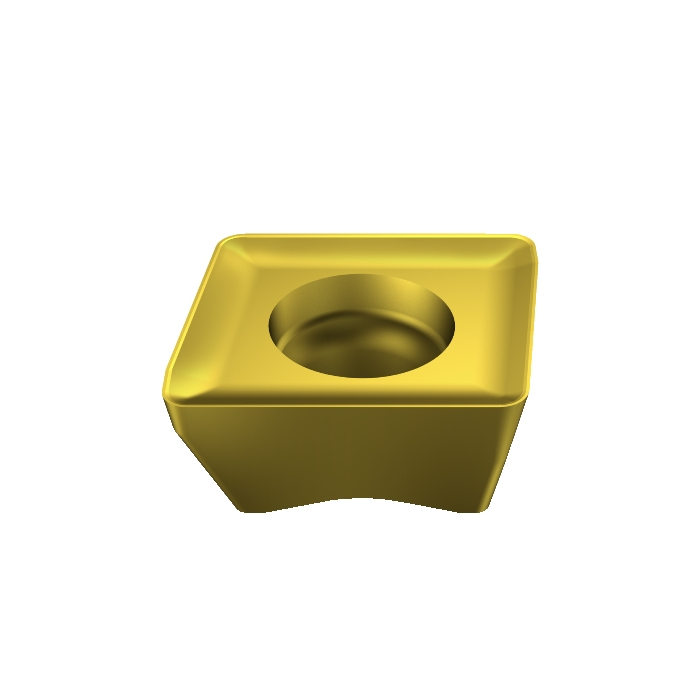

Sandvik Coromant 690-100508M-E-SL 2040 CoroMill™ 690 insert for milling
R 377,20
inc. vat
In stock
SKU
5764717
CoroMill® 690 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 690 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 4.3g |
| AN - Clearance Angle Major | 11deg |
| RE - Corner Radius | 0.8mm |
| Insert Thickness | 5.2mm |
| D1 - Fixing Hole Diameter | 4.5mm |
| LE - Cutting Edge Effective Length | 10mm |
| L - Cutting Edge Length | 10mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 1mm |
| W1 - Insert Width | 10mm |
| ORDCODE | 690-100508M-E-SL 2040 |
| CHANGEDATE | 2022-09-23 17:45:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 10E |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MK1005E_1 |
| Grade | 2040 |
| COATING | CVD TiCrN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | SL |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
