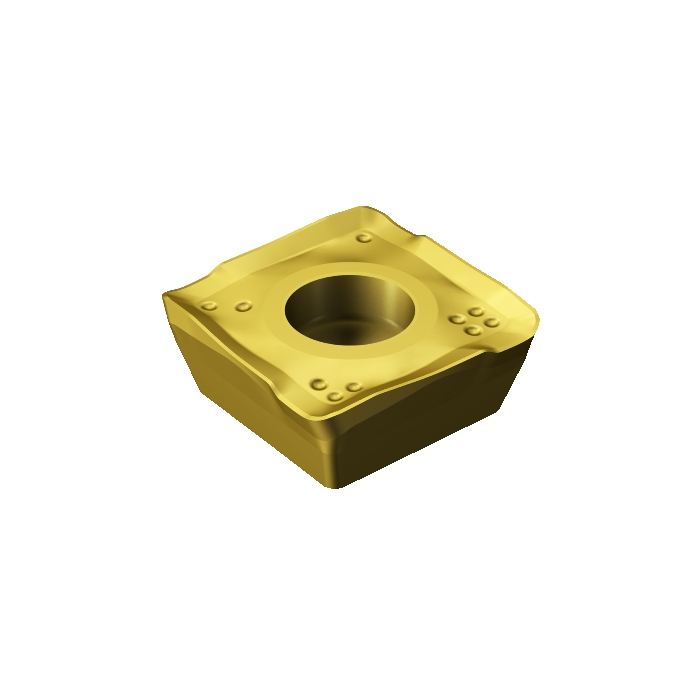

Sandvik Coromant 490R-140408E-ML S30T CoroMill™ 490 insert for milling
Next
Sandvik Coromant 490R-140412E-MM S30T CoroMill™ 490 insert for milling
Previous
![Sandvik Coromant 490R-140408E-ML S30T CoroMill™ 490 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/65752ad24/sandvik-coromant-490r-140408e-ml-s30t-coromilltm-490-insert-for-milling.jpg)
![Sandvik Coromant 490R-140412E-MM S30T CoroMill™ 490 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/65750a47a/sandvik-coromant-490r-140412e-mm-s30t-coromilltm-490-insert-for-milling.jpg)
R 432,40
inc. vat
In stock
SKU
5922168
CoroMill® 490 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 490 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 7.9g |
AN - Clearance Angle Major | 16deg |
IC - Inscribed Circle Diameter | 13.8mm |
RE - Corner Radius | 1.2mm |
Insert Thickness | 3.9mm |
D1 - Fixing Hole Diameter | 4.1mm |
LE - Cutting Edge Effective Length | 10.3mm |
L - Cutting Edge Length | 14mm |
KRINS - Major Cutting Edge Angle | 90deg |
BS - Wiper Edge Length | 1.6mm |
APMX - Depth Of Cut Maximum | 10mm |
ORDCODE | 490R-140412E-MM S40T |
CHANGEDATE | 2021-12-17 20:35:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 14 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MI1404_1 |
Grade | S40T |
COATING | CVD TiCrN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | MM |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | True |
