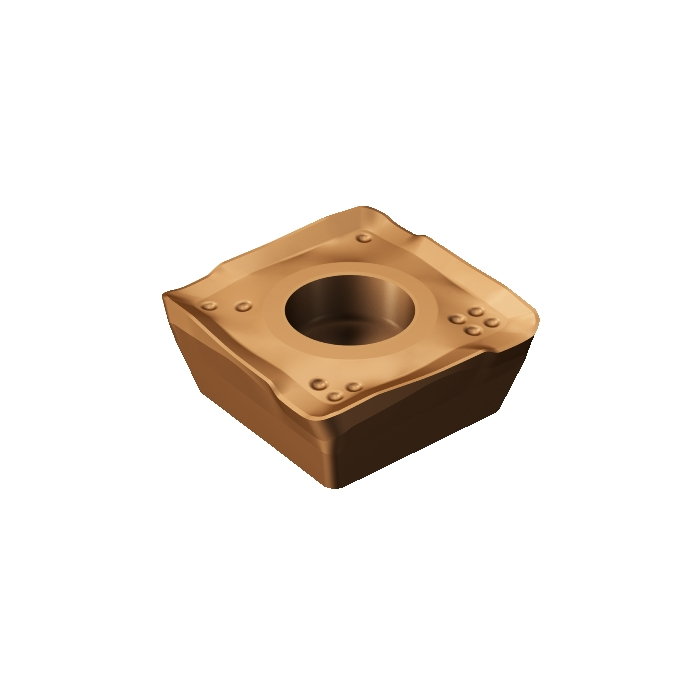

Sandvik Coromant 490R-140420M-PH 1020 CoroMill™ 490 insert for milling
R 338,10
inc. vat
In stock
SKU
5854752
CoroMill® 490 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 490 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 8.1g |
| AN - Clearance Angle Major | 16deg |
| IC - Inscribed Circle Diameter | 13.8mm |
| RE - Corner Radius | 2mm |
| Insert Thickness | 3.9mm |
| D1 - Fixing Hole Diameter | 4.1mm |
| LE - Cutting Edge Effective Length | 10.3mm |
| L - Cutting Edge Length | 14mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 0.9mm |
| APMX - Depth Of Cut Maximum | 10mm |
| ORDCODE | 490R-140420M-PH 1020 |
| CHANGEDATE | 2022-09-23 17:51:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 14 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MI1404_1 |
| Grade | 1020 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PH |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | True |
