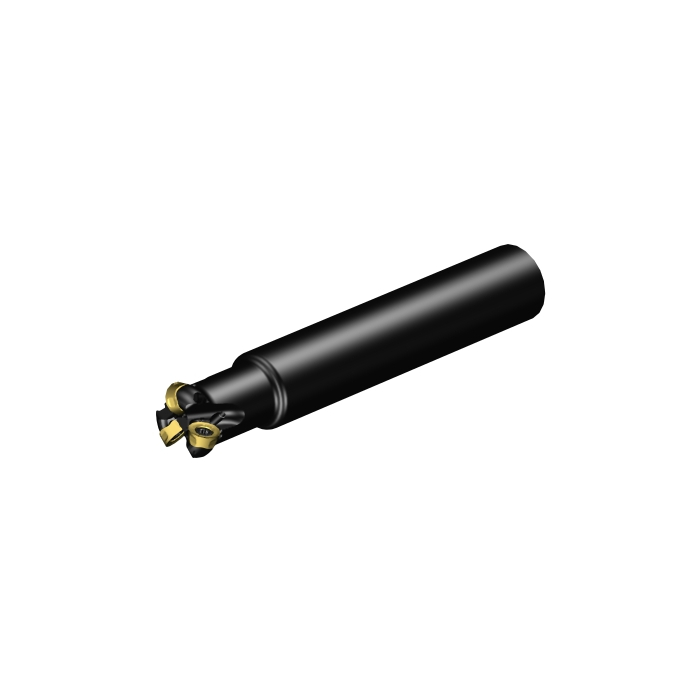

Sandvik Coromant 600-025A25-10H CoroMill™ 600 face milling cutter

R 6 350,30 inc. vat
In stock
SKU
6252655
CoroMill® 600 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 600 face milling cutter
More Information
CP - Coolant Pressure 5000000Pa
DCON - Connection Diameter 25mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 150mm
LB - Body Length 31.8mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 223001/min
WT - Weight Of Item 480g
OAL - Overall Length 150mm
OHX - Maximum Overhang 94mm
LSC - Clamping Length 56mm
RMPX - Maximum Ramping Angle 3deg
GAMO - Orthogonal Rake Angle 5deg
LAMS - Inclination Angle -5deg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 10mm
Insert Thickness 4.5mm
LU - Usable Length 31.8mm
APMX - Depth Of Cut Maximum 5mm
DC - Cutting Diameter 15mm
DCF - Cutting Diameter Face Contact 15mm
GAMF - Radial Rake Angle 4.9999998deg
GAMP - Axial Rake Angle 4.9999998deg
DCX - Maximum Cutting Diameter 25mm
AZ - Maximum Plunge Depth 1.5mm
ORDCODE 600-025A25-10H
ADINTMS - Adaptive Interface Machine Direction M_CYLR_G2500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 16:17:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NM1045_1
Hand R
MIID - Master Insert Identification 600-1045
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 10
CICT - Cutting Item Count 3
ZEFP - Peripheral Effective Cutting Edge Count 3
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CPDF - Cutting Pitch Differential True
