R 8 702,05
inc. vat
In stock
SKU
6252732

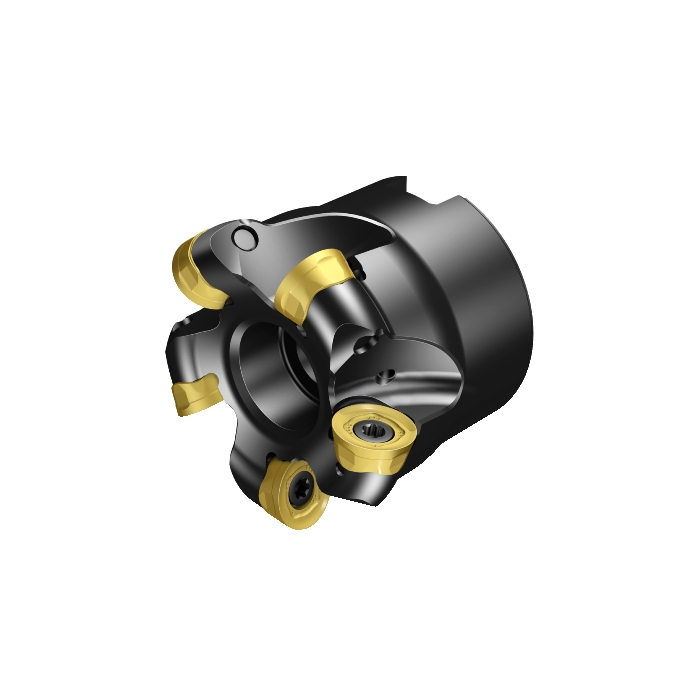

CoroMill® 600 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 600 face milling cutter
CP - Coolant Pressure | 5000000Pa |
---|---|
DCON - Connection Diameter | 22mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 40mm |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 187001/min |
WT - Weight Of Item | 0.254kg |
OAL - Overall Length | 40mm |
OHX - Maximum Overhang | 40mm |
RMPX - Maximum Ramping Angle | 4deg |
GAMO - Orthogonal Rake Angle | 5deg |
LAMS - Inclination Angle | -5deg |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 12mm |
Insert Thickness | 5.2mm |
APMX - Depth Of Cut Maximum | 6mm |
DC - Cutting Diameter | 38mm |
DCF - Cutting Diameter Face Contact | 38mm |
GAMF - Radial Rake Angle | 4.9999998deg |
GAMP - Axial Rake Angle | 4.9999998deg |
DCX - Maximum Cutting Diameter | 50mm |
AZ - Maximum Plunge Depth | 2mm |
ORDCODE | 600-050Q22-12M |
ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_G2200_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:06:00.000 |
STDLET - Standard Letter | A |
STDNO - Standard Number | ISO6462 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NM1252_1 |
Hand | R |
MIID - Master Insert Identification | 600-1252 |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 12 |
CICT - Cutting Item Count | 4 |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
