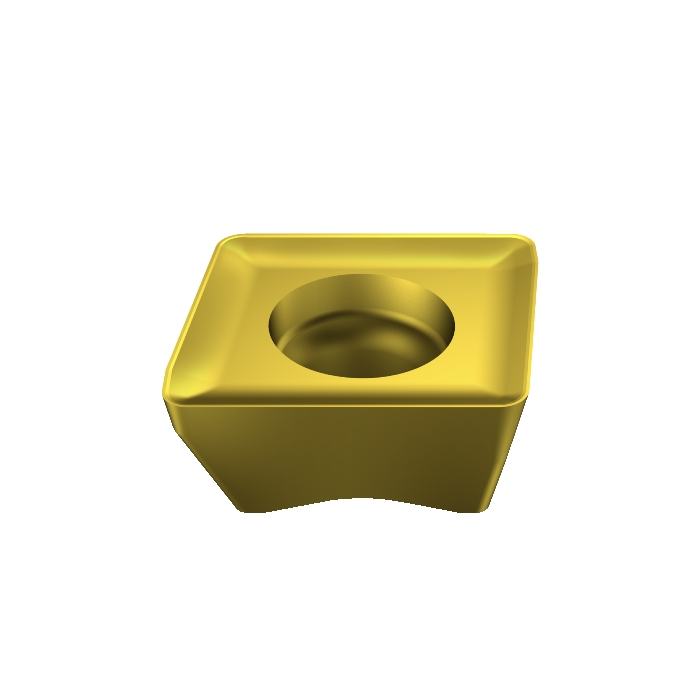

Sandvik Coromant 690-100531M-E-SL S30T CoroMill™ 690 insert for milling
Next
Sandvik Coromant 690-100516M-E-SL S30T CoroMill™ 690 insert for milling
Previous
![Sandvik Coromant 690-100531M-E-SL S30T CoroMill™ 690 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/654226aa4/sandvik-coromant-690-100531m-e-sl-s30t-coromilltm-690-insert-for-milling.jpg)
![Sandvik Coromant 690-100516M-E-SL S30T CoroMill™ 690 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/65420fabc/sandvik-coromant-690-100516m-e-sl-s30t-coromilltm-690-insert-for-milling.jpg)
R 379,50
inc. vat
In stock
SKU
5853417
CoroMill® 690 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 690 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 4.3g |
AN - Clearance Angle Major | 11deg |
RE - Corner Radius | 1.6mm |
Insert Thickness | 5.2mm |
D1 - Fixing Hole Diameter | 4.5mm |
LE - Cutting Edge Effective Length | 10mm |
L - Cutting Edge Length | 10mm |
KRINS - Major Cutting Edge Angle | 90deg |
BS - Wiper Edge Length | 1mm |
W1 - Insert Width | 10mm |
ORDCODE | 690-100516M-E-SL S40T |
CHANGEDATE | 2021-12-17 20:21:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 10E |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MK1005E_1 |
Grade | S40T |
COATING | CVD TiCrN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | SL |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | True |
