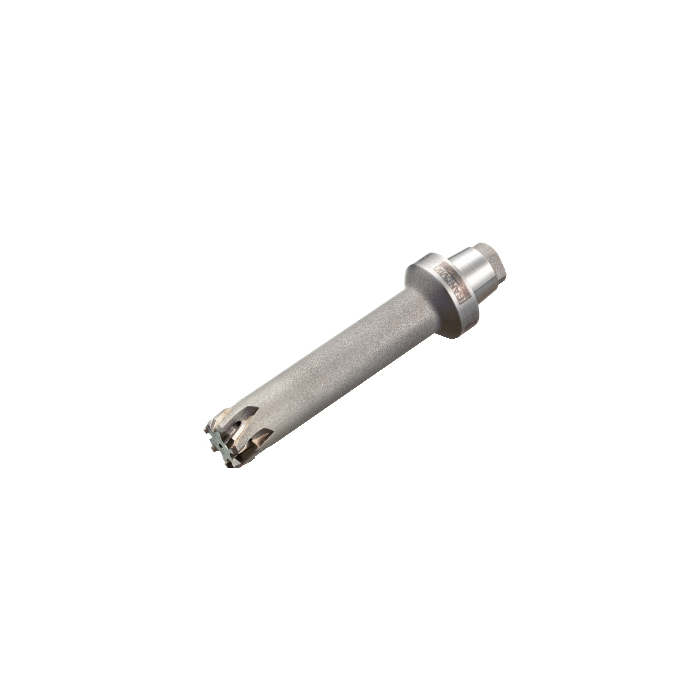

Sandvik Coromant 830B-E06D1300H7S12 CoroReamer® 830 solid carbide head for reaming
R 6 658,50
inc. vat
In stock
SKU
5765256
CoroReamer™ 830 solid carbide head for reaming
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroReamer™ 830 solid carbide head for reaming
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 12mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 60mm |
| RPMX - Rotational Speed Maximum | 500001/min |
| WT - Weight Of Item | 69.2g |
| OAL - Overall Length | 71.35mm |
| OHX - Maximum Overhang | 60mm |
| LU - Usable Length | 45mm |
| L - Cutting Edge Length | 6mm |
| APMX - Depth Of Cut Maximum | 0.3mm |
| TG - Taper Gradient | 0 |
| DC - Cutting Diameter | 13mm |
| FHA - Flute Helix Angle | 10deg |
| TCHAL - Achievable Hole Tolerance Lower | 0mm |
| TCHAU - Achievable Hole Tolerance Upper | 0.018mm |
| LCF - Chip Flute Length | 10.009mm |
| PHD - Premachined Hole Diameter | 12.8mm |
| PLGL - Plug Length | 1.4mm |
| ORDCODE | 830B-E06D1300H7S12 |
| ADINTMS - Adaptive Interface Machine Direction | M_R830HD1_C0120_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-11-09 11:16:00.000 |
| Hand | R |
| SUBSTRATE | HT |
| BSG - Basic Standard Group | COROMANT |
| TCHA - Achievable Hole Tolerance | H7 |
| ZEFP - Peripheral Effective Cutting Edge Count | 6 |
| NOF - Flute Count | 6 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
