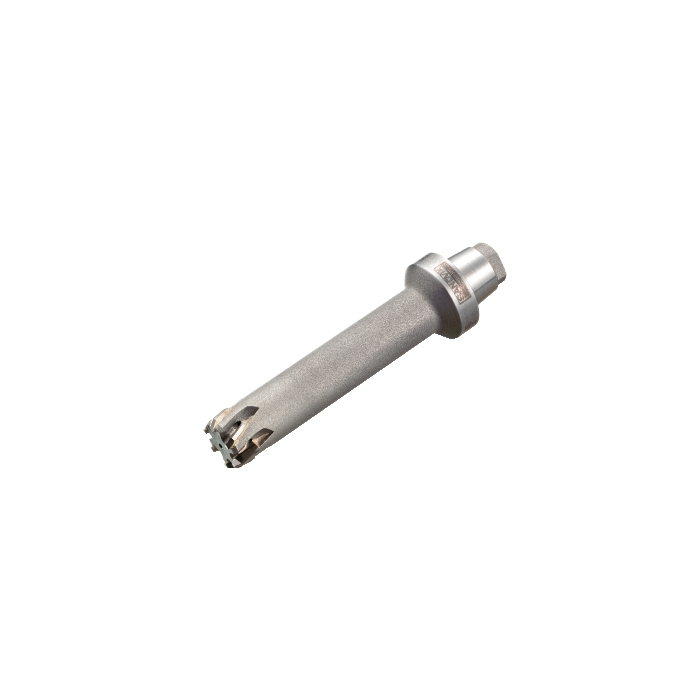

Sandvik Coromant 830B-E06D1200H7S12 CoroReamer® 830 solid carbide head for reaming

Name: Sandvik Coromant 830B-E06D1200H7S12 CoroReamer® 830 solid carbide head for reaming
SKU: 5765219
Price: 6307.75 ZAR
Availability: InStock

Be the first to review this product

R 6 307,75 inc. vat

In stock

SKU

5765219

CoroReamer™ 830 solid carbide head for reaming

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroReamer™ 830 solid carbide head for reaming

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	60mm
RPMX - Rotational Speed Maximum	500001/min
WT - Weight Of Item	0.066kg
OAL - Overall Length	71.35mm
OHX - Maximum Overhang	60mm
LU - Usable Length	45mm
L - Cutting Edge Length	6mm
APMX - Depth Of Cut Maximum	0.3mm
TG - Taper Gradient	0
DC - Cutting Diameter	12mm
FHA - Flute Helix Angle	10deg
TCHAL - Achievable Hole Tolerance Lower	0mm
TCHAU - Achievable Hole Tolerance Upper	0.018mm
LCF - Chip Flute Length	9.991mm
PHD - Premachined Hole Diameter	11.8mm
PLGL - Plug Length	1.4mm
ORDCODE	830B-E06D1200H7S12
ADINTMS - Adaptive Interface Machine Direction	M_R830HD1_C0120_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2021-12-22 03:48:00.000
Hand	R
SUBSTRATE	HT
BSG - Basic Standard Group	COROMANT
TCHA - Achievable Hole Tolerance	H7
ZEFP - Peripheral Effective Cutting Edge Count	6
NOF - Flute Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
