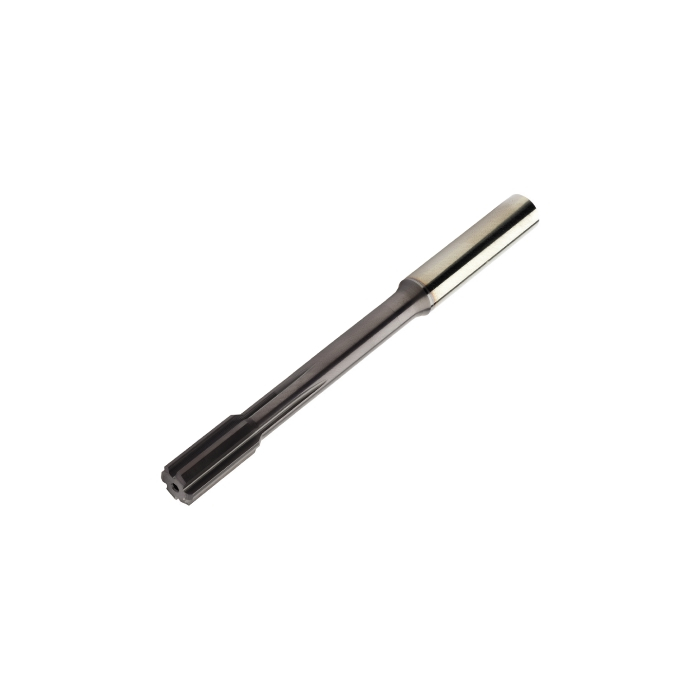

Sandvik Coromant 835.B-1202-A1-PF 1024 CoroReamer® 835 solid carbide reamer

Name: Sandvik Coromant 835.B-1202-A1-PF 1024 CoroReamer® 835 solid carbide reamer
SKU: 6266930
Price: 5392.35 ZAR
Availability: InStock

Be the first to review this product

R 5 392,35 inc. vat

In stock

SKU

6266930

CoroReamer™ 835 solid carbide reamer

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroReamer™ 835 solid carbide reamer

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	118.19mm
RPMX - Rotational Speed Maximum	58791/min
WT - Weight Of Item	0.153kg
OAL - Overall Length	120mm
OHX - Maximum Overhang	73.19mm
LU - Usable Length	75mm
L - Cutting Edge Length	20mm
APMX - Depth Of Cut Maximum	0.3mm
TG - Taper Gradient	0
DC - Cutting Diameter	12.02mm
DN - Neck Diameter	9.4mm
FHA - Flute Helix Angle	0deg
TCHAL - Achievable Hole Tolerance Lower	0mm
TCHAU - Achievable Hole Tolerance Upper	0.018mm
LCF - Chip Flute Length	26mm
PHD - Premachined Hole Diameter	11.8mm
PLGL - Plug Length	1.81mm
ORDCODE	835.B-1202-A1-PF 1024
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 13:02:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1024
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
TCHA - Achievable Hole Tolerance	H7
ZEFP - Peripheral Effective Cutting Edge Count	6
NOF - Flute Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
