Sandvik Coromant 860.2-0685-021A1-MM 2214 CoroDrill® 860 solid carbide step and chamfer drill Previous Sandvik Coromant 860.2-0685-021A1-MM 2214 CoroDrill® 860 solid carbide step and chamfer drill

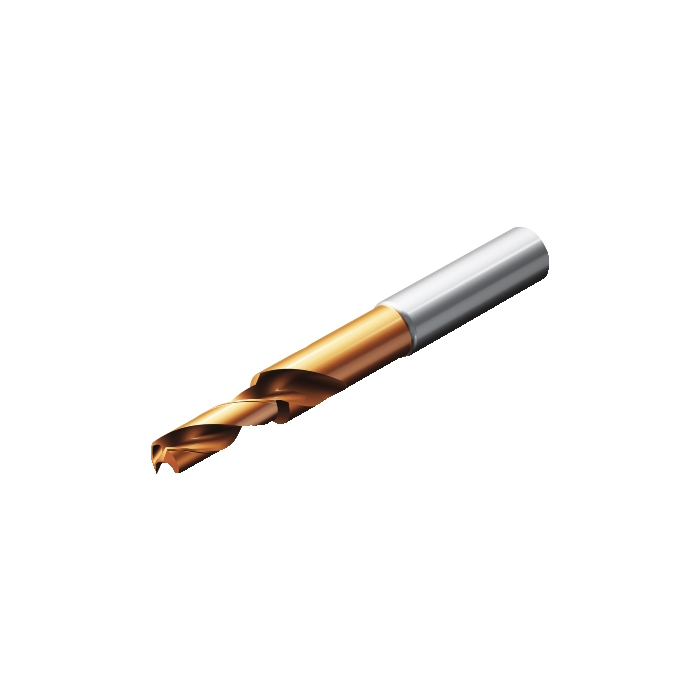

Sandvik Coromant 860.2-0690-021A1-MM 2214 CoroDrill® 860 solid carbide step and chamfer drill

R 3 053,25 inc. vat
Out of stock
SKU
6423106
CoroDrill® 860 solid carbide step and chamfer drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 860 solid carbide step and chamfer drill
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 10mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 87.9mm
RPMX - Rotational Speed Maximum 500001/min
WT - Weight Of Item 0.082kg
OAL - Overall Length 89mm
OHX - Maximum Overhang 47.74mm
LSC - Clamping Length 40mm
GAMO - Orthogonal Rake Angle 17.96deg
LU - Usable Length 22.1mm
DC - Cutting Diameter 9.32mm
FHA - Flute Helix Angle 26.488067deg
TCHAL - Achievable Hole Tolerance Lower 6.9mm
TCHAU - Achievable Hole Tolerance Upper 6.936mm
PL - Point Length 1.1mm
LCF - Chip Flute Length 36mm
SIG - Point Angle 140deg
SDL - Step Diameter Length 19.8mm
STA - Step Included Angle 90deg
ORDCODE 860.2-0690-021A1-MM 2214
ADINTMS - Adaptive Interface Machine Direction M_CYLR_G1000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 2
CHANGEDATE 2021-11-11 16:33:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 2214
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H9
ZEFP - Peripheral Effective Cutting Edge Count 2
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
