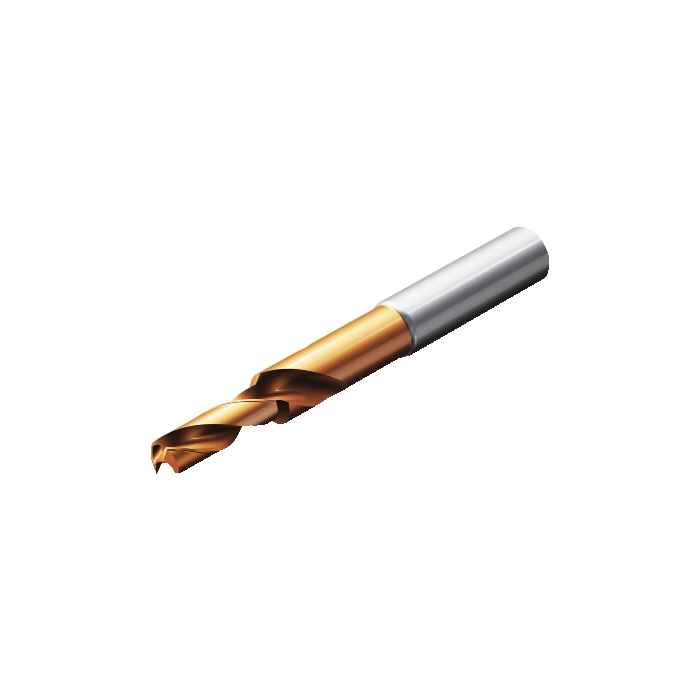

Sandvik Coromant 860.2-0685-021A1-MM 2214 CoroDrill® 860 solid carbide step and chamfer drill

Name: Sandvik Coromant 860.2-0685-021A1-MM 2214 CoroDrill® 860 solid carbide step and chamfer drill
SKU: 6423105
Price: 3053.25 ZAR
Availability: OutOfStock

Be the first to review this product

R 3 053,25 inc. vat

Out of stock

SKU

6423105

CoroDrill® 860 solid carbide step and chamfer drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 860 solid carbide step and chamfer drill

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	10mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	87.9mm
RPMX - Rotational Speed Maximum	500001/min
WT - Weight Of Item	0.082kg
OAL - Overall Length	89mm
OHX - Maximum Overhang	47.75mm
LSC - Clamping Length	40mm
GAMO - Orthogonal Rake Angle	17.84deg
LU - Usable Length	22.1mm
DC - Cutting Diameter	9.25mm
FHA - Flute Helix Angle	26.322089deg
TCHAL - Achievable Hole Tolerance Lower	6.85mm
TCHAU - Achievable Hole Tolerance Upper	6.886mm
PL - Point Length	1.1mm
LCF - Chip Flute Length	36mm
SIG - Point Angle	140deg
SDL - Step Diameter Length	19.8mm
STA - Step Included Angle	90deg
ORDCODE	860.2-0685-021A1-MM 2214
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G1000_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	2
CHANGEDATE	2021-11-11 16:31:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	2214
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
TCHA - Achievable Hole Tolerance	H9
ZEFP - Peripheral Effective Cutting Edge Count	2
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
