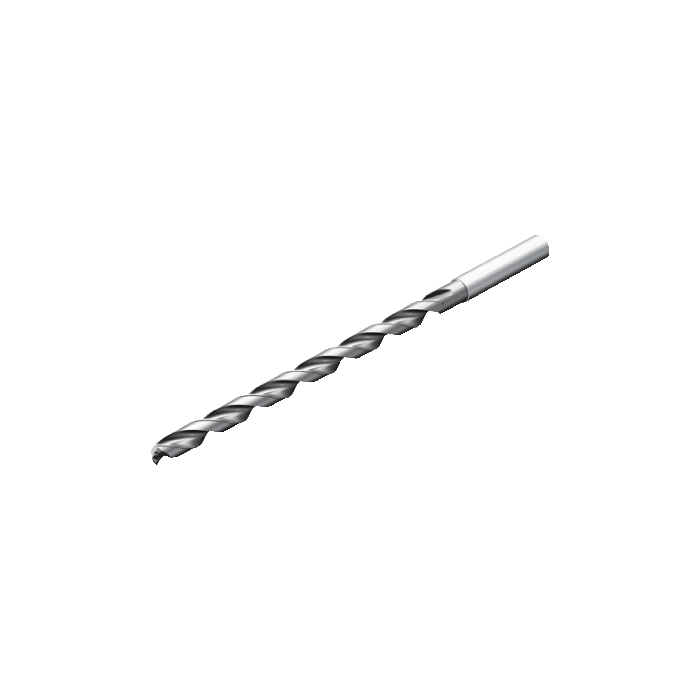

Sandvik Coromant 861.1-1500-180A1-GM GC34 CoroDrill® 861 solid carbide drill

R 14 886,75 inc. vat
In stock
SKU
6268290
CoroDrill® 861 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 861 solid carbide drill
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 16mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 288.5mm
BD - Body Diameter 15mm
LB - Body Length 243mm
RPMX - Rotational Speed Maximum 68751/min
WT - Weight Of Item 0.3kg
OAL - Overall Length 291mm
OHX - Maximum Overhang 240.5429mm
LSC - Clamping Length 48mm
GAMO - Orthogonal Rake Angle 19.32deg
LU - Usable Length 182.5mm
DC - Cutting Diameter 15mm
FHA - Flute Helix Angle 28.414808deg
ULDR - Usable Length Diameter Ratio 12.166666666667
PL - Point Length 2.5mm
LCF - Chip Flute Length 236mm
SIG - Point Angle 140deg
ORDCODE 861.1-1500-180A1-GM GC34
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1600_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 11:30:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade GC34
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H9
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
