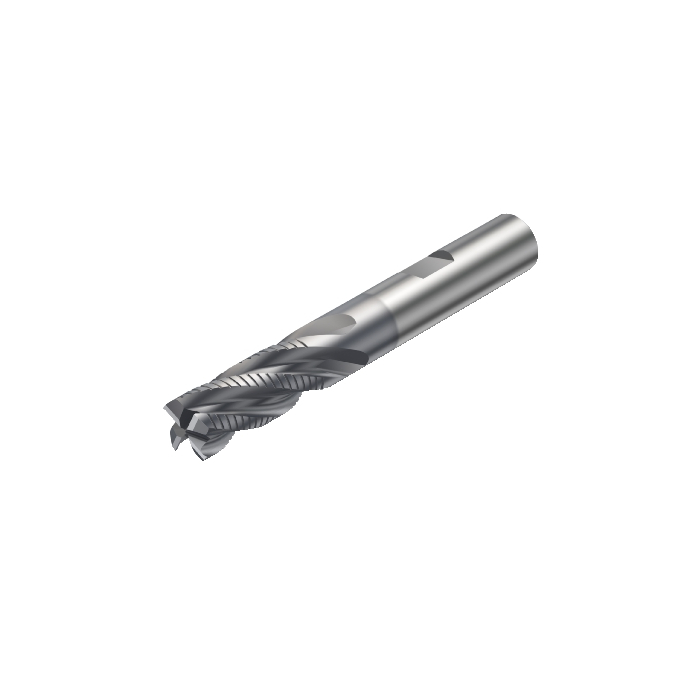

Sandvik Coromant R216.35-25030-BC45B 1620 CoroMill™ Plura solid carbide end mill for roughing with chip breaker

Name: Sandvik Coromant R216.35-25030-BC45B 1620 CoroMill™ Plura solid carbide end mill for roughing with chip breaker
SKU: 5743475
Price: 11244.70 ZAR
Availability: InStock

Be the first to review this product

R 11 244,70 inc. vat

In stock

SKU

5743475

CoroMill® Plura solid carbide end mill for roughing with chip breaker

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for roughing with chip breaker

More Information

More Information
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	121mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.739kg
OAL - Overall Length	121mm
OHX - Maximum Overhang	65mm
LSC - Clamping Length	56mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
H - Shank Height	23mm
LU - Usable Length	45mm
MHD - Mounting Hole Distance	32mm
APMX - Depth Of Cut Maximum	45mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.15mm
DC - Cutting Diameter	25mm
DCF - Cutting Diameter Face Contact	24.7mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	4deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	1.8
ORDCODE	R216.35-25030-BC45B 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-07-28 19:04:00.000
STDLET - Standard Letter	WE
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	5
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
