Sandvik Coromant 862.1-0200-016A1-GM GC34 CoroDrill® 862 Solid carbide drill

R 2 960,10 inc. vat
In stock
SKU
6151159

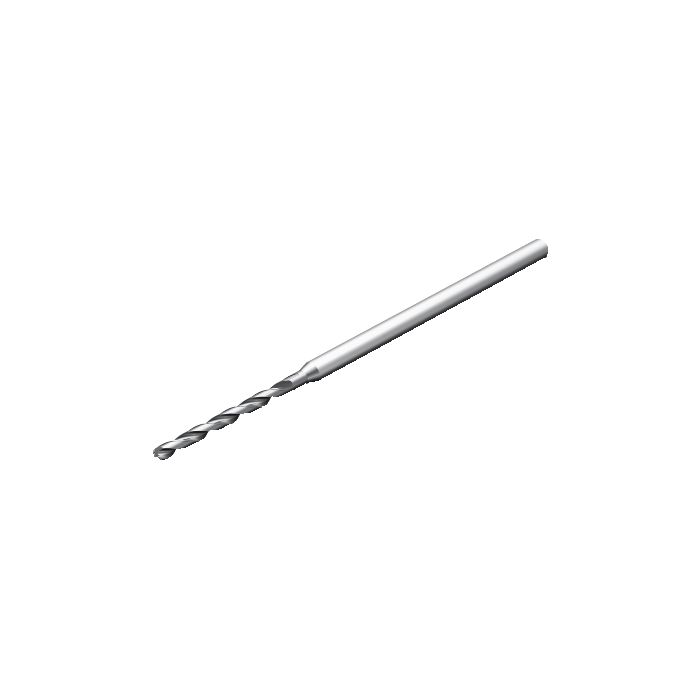

CoroDrill® 862 Solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 862 Solid carbide drill
More Information
CP - Coolant Pressure 4000000Pa
DCON - Connection Diameter 3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 72.7mm
BD - Body Diameter 2mm
LB - Body Length 26mm
RPMX - Rotational Speed Maximum 381971/min
WT - Weight Of Item 0.011kg
OAL - Overall Length 73mm
OHX - Maximum Overhang 25.6725mm
LSC - Clamping Length 36mm
GAMO - Orthogonal Rake Angle 19.94deg
LU - Usable Length 16.3mm
DC - Cutting Diameter 2mm
FHA - Flute Helix Angle 29.292368deg
ULDR - Usable Length Diameter Ratio 8.15
PL - Point Length 0.3mm
LCF - Chip Flute Length 22mm
SIG - Point Angle 140deg
ORDCODE 862.1-0200-016A1-GM GC34
ADINTMS - Adaptive Interface Machine Direction M_CYLR_F3000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2022-10-01 01:07:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade GC34
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H9
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
