Sandvik Coromant 862.1-0230-028A1-GM GC34 CoroDrill® 862 Solid carbide drill

R 3 476,45 inc. vat
In stock
SKU
6151178

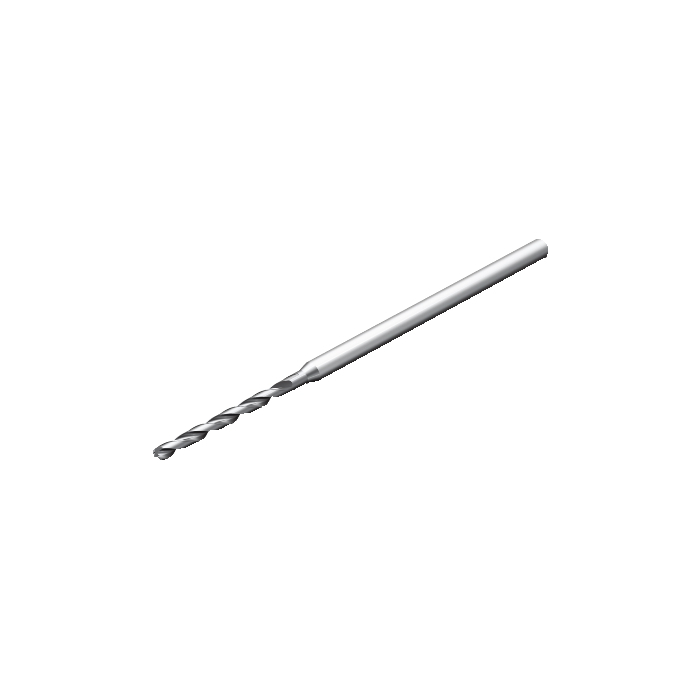

CoroDrill® 862 Solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 862 Solid carbide drill
More Information
CP - Coolant Pressure 4000000Pa
DCON - Connection Diameter 3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 77.6mm
BD - Body Diameter 2.3mm
LB - Body Length 40mm
RPMX - Rotational Speed Maximum 332151/min
WT - Weight Of Item 12.4g
OAL - Overall Length 78mm
OHX - Maximum Overhang 39.6233mm
LSC - Clamping Length 36mm
GAMO - Orthogonal Rake Angle 20.47deg
LU - Usable Length 28mm
DC - Cutting Diameter 2.3mm
FHA - Flute Helix Angle 30.030191deg
ULDR - Usable Length Diameter Ratio 12.173913043478
PL - Point Length 0.4mm
LCF - Chip Flute Length 36mm
SIG - Point Angle 140deg
ORDCODE 862.1-0230-028A1-GM GC34
ADINTMS - Adaptive Interface Machine Direction M_CYLR_F3000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2022-05-07 01:06:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade GC34
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H9
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
