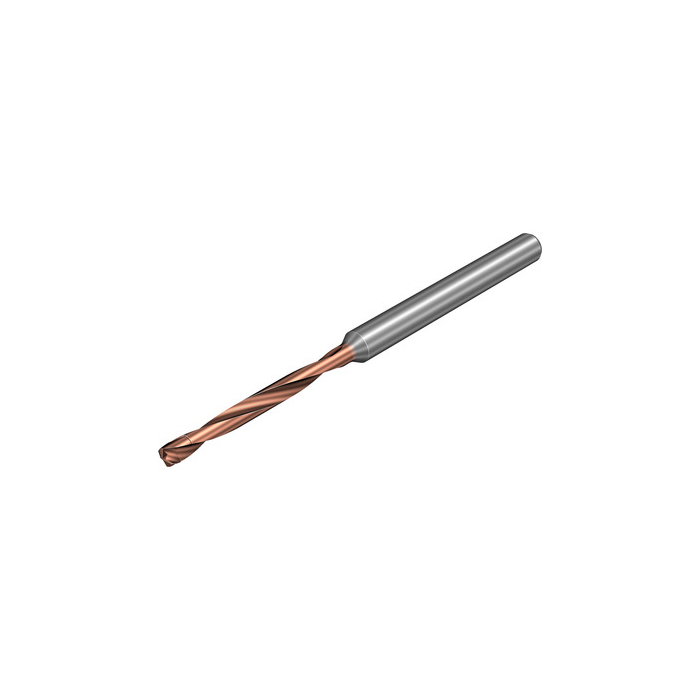

Sandvik Coromant 862.1-2350-211A0-GM X2BL CoroDrill® 862-GM Solid carbide micro drill

R 1 864,15 inc. vat
In stock
SKU
8172887
CoroDrill® 862-GM Solid carbide micro drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 862-GM Solid carbide micro drill
More Information
DCON - Connection Diameter 4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 59.57mm
RPMX - Rotational Speed Maximum 216731/min
WT - Weight Of Item 0.006kg
OAL - Overall Length 60mm
OHX - Maximum Overhang 27.3mm
GAMO - Orthogonal Rake Angle 20.45deg
LU - Usable Length 21.15mm
DC - Cutting Diameter 2.35mm
FHA - Flute Helix Angle 30deg
ULDR - Usable Length Diameter Ratio 9
PL - Point Length 0.427665mm
LCF - Chip Flute Length 25.9mm
SIG - Point Angle 140deg
ORDCODE 862.1-2350-211A0-GM X2BL
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F4000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-08-16 11:22:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade X2BL
COATING PVD TiAlSiN
SUBSTRATE HC
TCHA - Achievable Hole Tolerance H7
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
