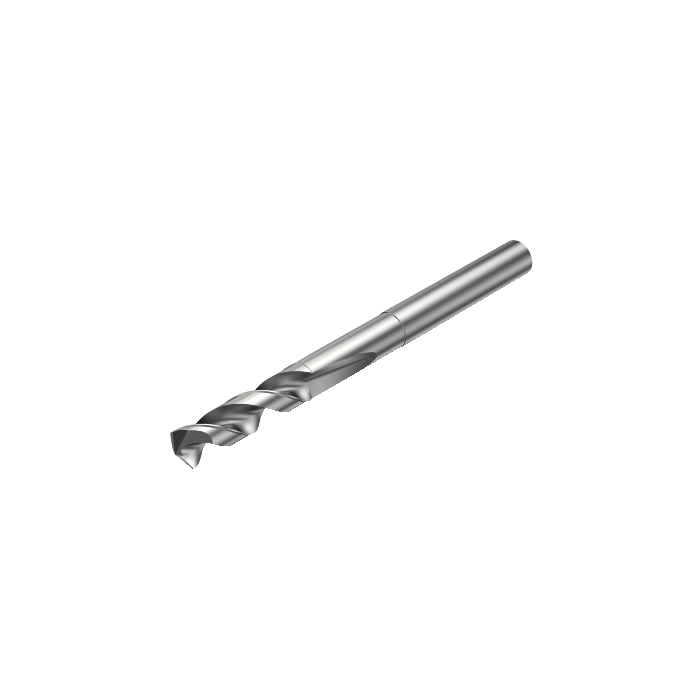

Sandvik Coromant 863.1-1112-043A1-N H10F CoroDrill® 863 solid carbide drill
R 7 011,55
inc. vat
Out of stock
SKU
6882097
CoroDrill® 863 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 863 solid carbide drill
| CP - Coolant Pressure | 900000Pa |
|---|---|
| DCON - Connection Diameter | 12mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 101.64mm |
| BD - Body Diameter | 11.122mm |
| LB - Body Length | 60mm |
| BHTA - Body Half Taper Angle | 45deg |
| RPMX - Rotational Speed Maximum | 200001/min |
| WT - Weight Of Item | 0.125kg |
| OAL - Overall Length | 105mm |
| OHX - Maximum Overhang | 57.08mm |
| GAMO - Orthogonal Rake Angle | 27.81deg |
| LU - Usable Length | 43mm |
| DC - Cutting Diameter | 11.122mm |
| FHA - Flute Helix Angle | 40deg |
| ULDR - Usable Length Diameter Ratio | 3.866211113109 |
| TCHAL - Achievable Hole Tolerance Lower | 11.122mm |
| TCHAU - Achievable Hole Tolerance Upper | 11.144mm |
| PL - Point Length | 3.36mm |
| LCF - Chip Flute Length | 58mm |
| SIG - Point Angle | 135deg |
| ORDCODE | 863.1-1112-043A1-N H10F |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1200_1 |
| CNSC - Coolant Entry Style Code | 4 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-12-22 14:40:00.000 |
| STDLET - Standard Letter | HA |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | H10F |
| SUBSTRATE | HF |
| BSG - Basic Standard Group | COROMANT |
| TCHA - Achievable Hole Tolerance | H8 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
