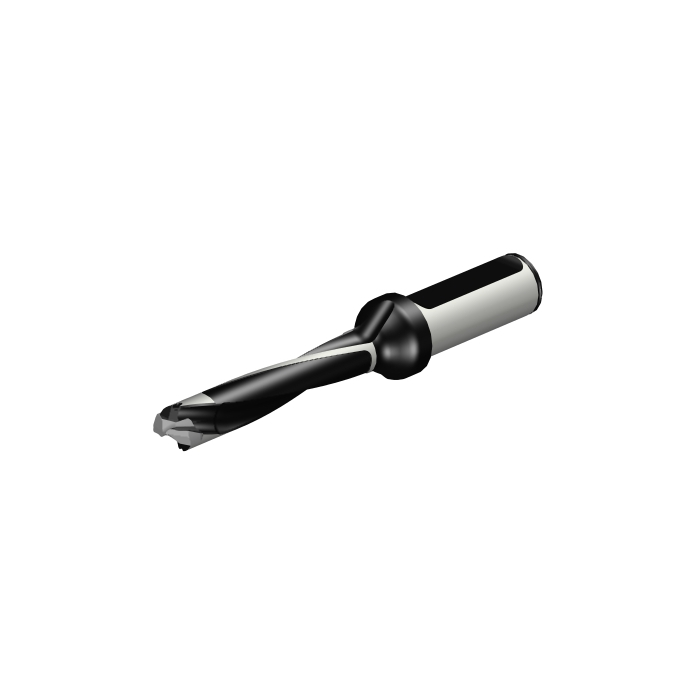

Sandvik Coromant 870-1400-14LX075-5 CoroDrill® 870 exchangeable tip drill

Name: Sandvik Coromant 870-1400-14LX075-5 CoroDrill® 870 exchangeable tip drill
SKU: 6035672
Price: 5156.60 ZAR
Availability: OutOfStock

Be the first to review this product

R 5 156,60 inc. vat

Out of stock

SKU

6035672

CoroDrill® 870 exchangeable tip drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 870 exchangeable tip drill

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	19.05mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	6.42mm
BD - Body Diameter	13.7mm
LB - Body Length	80mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	0.9Nm
RPMX - Rotational Speed Maximum	150001/min
WT - Weight Of Item	0.19kg
OAL - Overall Length	146mm
OHX - Maximum Overhang	93.72mm
LSC - Clamping Length	50mm
Insert Thickness	5.36mm
H - Shank Height	17.3mm
LU - Usable Length	77.25mm
INSL - Insert Length	8.7mm
DC - Cutting Diameter	14.9mm
FHA - Flute Helix Angle	20deg
DCX - Maximum Cutting Diameter	14.99mm
ULDR - Usable Length Diameter Ratio	5.184563758389
PL - Point Length	2.28mm
SIG - Point Angle	142deg
DCN - Minimum Cutting Diameter	14mm
ORDCODE	870-1400-14LX075-5
ADINTMS - Adaptive Interface Machine Direction	M_CYLISO_R7500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-01-19 14:49:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DK14_1
Hand	R
MIID - Master Insert Identification	870-1490-14-PM
SSC - Insert Seat Size Code	14
TCDCON - Connection Diameter Tolerance	h6
TCHA - Achievable Hole Tolerance	H9
CICT - Cutting Item Count	1
NOF - Flute Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
