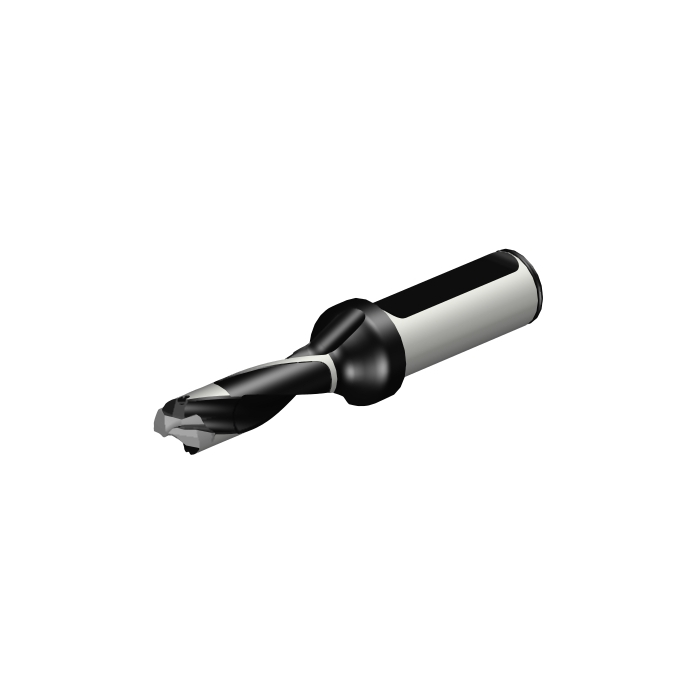

Sandvik Coromant 870-1400-14LX075-5 CoroDrill® 870 exchangeable tip drill
Next
Sandvik Coromant 870-1400-14L20-5 CoroDrill® 870 exchangeable tip drill
Previous
![Sandvik Coromant 870-1400-14LX075-5 CoroDrill® 870 exchangeable tip drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/74048aac5/sandvik-coromant-870-1400-14lx075-5-corodrillr-870-exchangeable-tip-drill.jpg)
![Sandvik Coromant 870-1400-14L20-5 CoroDrill® 870 exchangeable tip drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/740464834/sandvik-coromant-870-1400-14l20-5-corodrillr-870-exchangeable-tip-drill.jpg)
R 4 688,55
inc. vat
In stock
SKU
6035671
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 19.05mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 6.42mm |
BD - Body Diameter | 13.7mm |
LB - Body Length | 50mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 0.9Nm |
RPMX - Rotational Speed Maximum | 330001/min |
WT - Weight Of Item | 171g |
OAL - Overall Length | 116mm |
OHX - Maximum Overhang | 63.72mm |
LSC - Clamping Length | 50mm |
Insert Thickness | 5.36mm |
H - Shank Height | 17.3mm |
LU - Usable Length | 47.27mm |
INSL - Insert Length | 8.7mm |
DC - Cutting Diameter | 14.9mm |
FHA - Flute Helix Angle | 20deg |
DCX - Maximum Cutting Diameter | 14.99mm |
ULDR - Usable Length Diameter Ratio | 3.172483221477 |
PL - Point Length | 2.28mm |
SIG - Point Angle | 142deg |
DCN - Minimum Cutting Diameter | 14mm |
ORDCODE | 870-1400-14LX075-3 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLISO_R7500_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-19 14:49:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DK14_1 |
Hand | R |
MIID - Master Insert Identification | 870-1490-14-PM |
SSC - Insert Seat Size Code | 14 |
TCDCON - Connection Diameter Tolerance | h6 |
TCHA - Achievable Hole Tolerance | H9 |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
