Sandvik Coromant 870-2400-24LX125-8 CoroDrill® 870 exchangeable tip drill
Next
Sandvik Coromant 870-2400-24LX125-3 CoroDrill® 870 exchangeable tip drill
Previous
![Sandvik Coromant 870-2400-24LX125-8 CoroDrill® 870 exchangeable tip drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/749195d4b/sandvik-coromant-870-2400-24lx125-8-corodrillr-870-exchangeable-tip-drill.jpg)
![Sandvik Coromant 870-2400-24LX125-3 CoroDrill® 870 exchangeable tip drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/749170f95/sandvik-coromant-870-2400-24lx125-3-corodrillr-870-exchangeable-tip-drill.jpg)
R 9 427,70
inc. vat
In stock
SKU
6239463

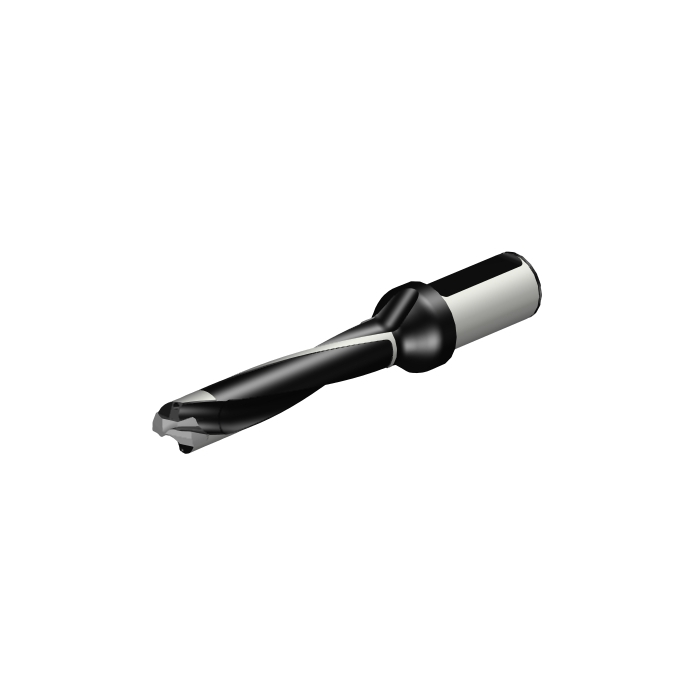

CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 31.75mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 11.23mm |
BD - Body Diameter | 23.5mm |
LB - Body Length | 132mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 2Nm |
RPMX - Rotational Speed Maximum | 105001/min |
WT - Weight Of Item | 756g |
OAL - Overall Length | 219mm |
OHX - Maximum Overhang | 155.23mm |
LSC - Clamping Length | 60mm |
Insert Thickness | 8.36mm |
H - Shank Height | 29.8mm |
LU - Usable Length | 128.73mm |
INSL - Insert Length | 15mm |
DC - Cutting Diameter | 24.9mm |
FHA - Flute Helix Angle | 20deg |
DCX - Maximum Cutting Diameter | 24.99mm |
ULDR - Usable Length Diameter Ratio | 5.169879518072 |
PL - Point Length | 3.77mm |
SIG - Point Angle | 142deg |
DCN - Minimum Cutting Diameter | 24mm |
ORDCODE | 870-2400-24LX125-5 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLISO_S1250_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-19 14:51:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DK24_1 |
Hand | R |
MIID - Master Insert Identification | 870-2490-24-PM |
SSC - Insert Seat Size Code | 24 |
TCDCON - Connection Diameter Tolerance | h6 |
TCHA - Achievable Hole Tolerance | H9 |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
