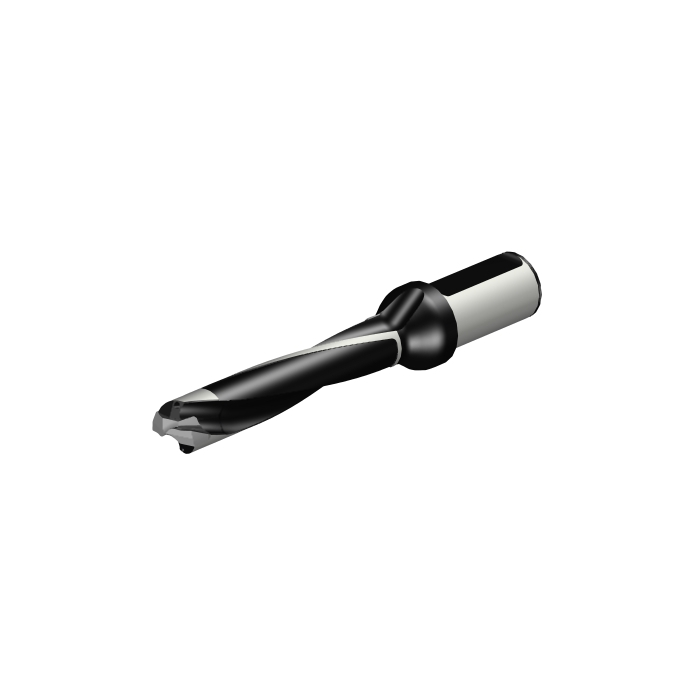

Sandvik Coromant 870-2500-25L32-5 CoroDrill® 870 exchangeable tip drill

R 10 314,35 inc. vat
In stock
SKU
6239466
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 11.79mm
BD - Body Diameter 24.5mm
LB - Body Length 137mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 2Nm
RPMX - Rotational Speed Maximum 105001/min
WT - Weight Of Item 789g
OAL - Overall Length 223mm
OHX - Maximum Overhang 159.09mm
LSC - Clamping Length 60mm
Insert Thickness 8.66mm
H - Shank Height 30mm
LU - Usable Length 133.88mm
INSL - Insert Length 15.7mm
DC - Cutting Diameter 25.9mm
FHA - Flute Helix Angle 20deg
DCX - Maximum Cutting Diameter 25.99mm
ULDR - Usable Length Diameter Ratio 5.169111969112
PL - Point Length 3.91mm
SIG - Point Angle 142deg
DCN - Minimum Cutting Diameter 25mm
ORDCODE 870-2500-25L32-5
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_G3200_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-01-19 14:50:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DK25_1
Hand R
MIID - Master Insert Identification 870-2590-25-PM
SSC - Insert Seat Size Code 25
TCDCON - Connection Diameter Tolerance h6
TCHA - Achievable Hole Tolerance H9
CICT - Cutting Item Count 1
NOF - Flute Count 2
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
