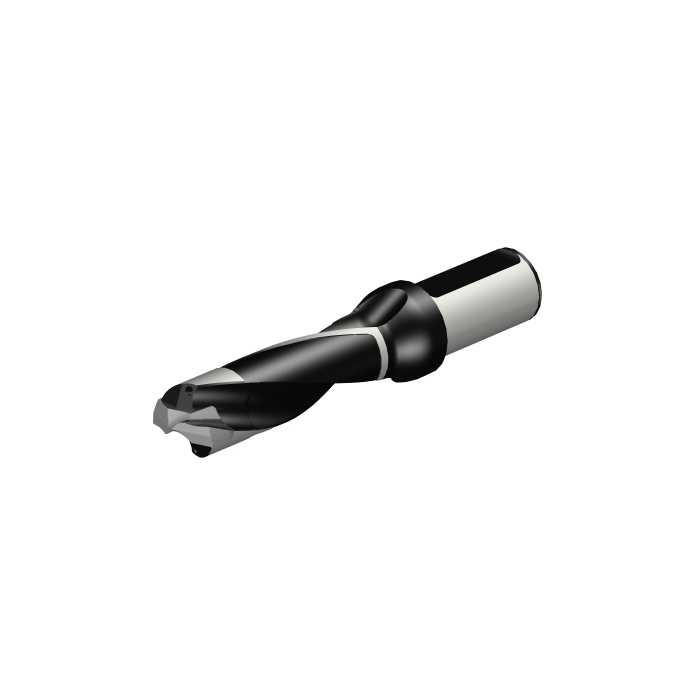

Sandvik Coromant 870-3100-31LX125-5 CoroDrill® 870 exchangeable tip drill
Next
Sandvik Coromant 870-3100-31L32-8 CoroDrill® 870 exchangeable tip drill
Previous
![Sandvik Coromant 870-3100-31LX125-5 CoroDrill® 870 exchangeable tip drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/76132cc85/sandvik-coromant-870-3100-31lx125-5-corodrillr-870-exchangeable-tip-drill.jpg)
![Sandvik Coromant 870-3100-31L32-8 CoroDrill® 870 exchangeable tip drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/761306853/sandvik-coromant-870-3100-31l32-8-corodrillr-870-exchangeable-tip-drill.jpg)
R 11 721,95
inc. vat
In stock
SKU
6426019
CoroDrill® 870 exchangeable tip drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 870 exchangeable tip drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 31.75mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 14.42mm |
BD - Body Diameter | 30.4mm |
LB - Body Length | 108mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 160001/min |
WT - Weight Of Item | 0.848kg |
OAL - Overall Length | 194mm |
OHX - Maximum Overhang | 128.92mm |
LSC - Clamping Length | 60mm |
Insert Thickness | 10.46mm |
H - Shank Height | 29.8mm |
LU - Usable Length | 104.09mm |
INSL - Insert Length | 19.5mm |
DC - Cutting Diameter | 33mm |
FHA - Flute Helix Angle | 20deg |
DCX - Maximum Cutting Diameter | 33mm |
ULDR - Usable Length Diameter Ratio | 3.154242424242 |
PL - Point Length | 5.08mm |
SIG - Point Angle | 142deg |
DCN - Minimum Cutting Diameter | 31mm |
ORDCODE | 870-3100-31LX125-3 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLISO_S1250_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-19 14:50:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DK31_1 |
Hand | R |
MIID - Master Insert Identification | 870-3300-31-PM |
SSC - Insert Seat Size Code | 31 |
TCDCON - Connection Diameter Tolerance | h6 |
TCHA - Achievable Hole Tolerance | H9 |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
