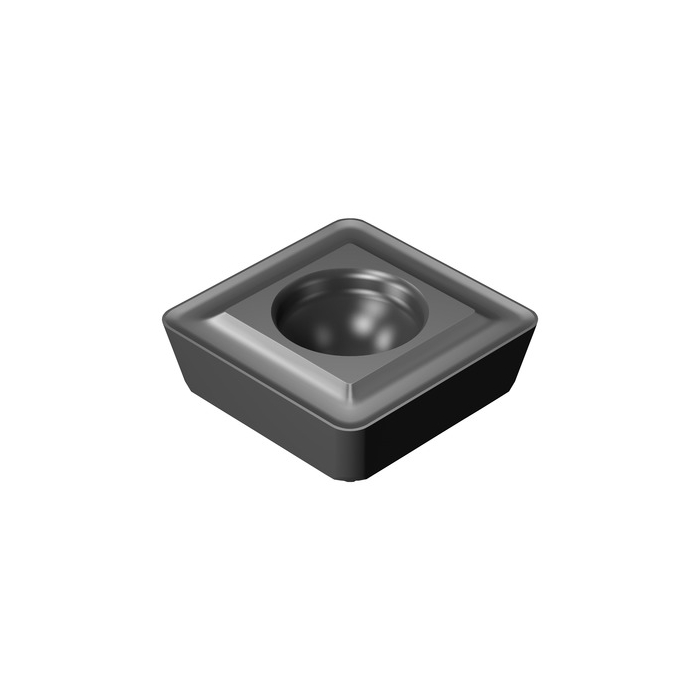

Sandvik Coromant 880-07 04 W10H-P-MS N124 CoroDrill® 880 insert for drilling

R 1 443,25 inc. vat
In stock
SKU
7362186
CoroDrill® 880 insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 insert for drilling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.007kg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 12.65mm
RE - Corner Radius 1mm
Insert Thickness 4mm
D1 - Fixing Hole Diameter 4mm
BN - Face Land Width 0.14mm
GB - Face Land Angle 2.5deg
BS - Wiper Edge Length 0.3mm
GAN - Insert Rake Angle 15deg
BSR - Wiper Edge Radius 5mm
ORDCODE 880-07 04 W10H-P-MS N124
CHANGEDATE 2022-09-21 12:32:00.000
Hand R
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 07P
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_DE0704P_1
Grade N124
COATING DCT Sp3
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MS
INSUC - Insert Usage Code P
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property True
