Sandvik Coromant 880-D0670L50-04 CoroDrill® 880 indexable insert drill
Next
Sandvik Coromant 880-D0820V80-03 CoroDrill® 880 indexable insert drill
Previous
![Sandvik Coromant 880-D0670L50-04 CoroDrill® 880 indexable insert drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/762600fa8/sandvik-coromant-880-d0670l50-04-corodrillr-880-indexable-insert-drill.jpg)
![Sandvik Coromant 880-D0820V80-03 CoroDrill® 880 indexable insert drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/76258abc8/sandvik-coromant-880-d0820v80-03-corodrillr-880-indexable-insert-drill.jpg)
R 34 199,85
inc. vat
Out of stock
SKU
6660382

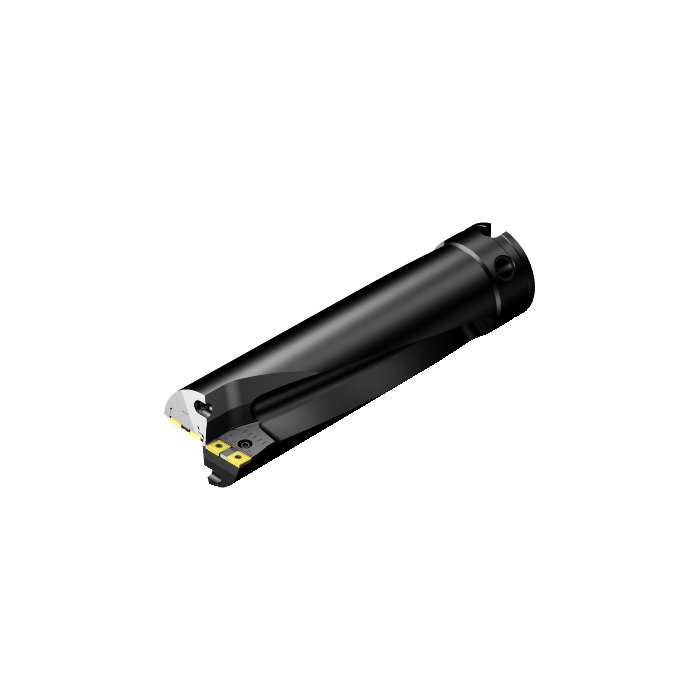

CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 80mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 330.5mm |
BD - Body Diameter | 78mm |
LB - Body Length | 287.61mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 50001/min |
WT - Weight Of Item | 12.7kg |
OAL - Overall Length | 350mm |
OHX - Maximum Overhang | 330.5mm |
KAPR - Tool Cutting Edge Angle | 88deg |
GAMO - Orthogonal Rake Angle | 5deg |
LAMS - Inclination Angle | 0deg |
IC - Inscribed Circle Diameter | 12.35mm |
Insert Thickness | 4mm |
LU - Usable Length | 250.5mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 0mm |
DC - Cutting Diameter | 83mm |
FHA - Flute Helix Angle | 15deg |
ULDR - Usable Length Diameter Ratio | 3.018072289157 |
TCHAL - Achievable Hole Tolerance Lower | -0.3mm |
TCHAU - Achievable Hole Tolerance Upper | 0.3mm |
PL - Point Length | 1.5mm |
SIG - Point Angle | 176deg |
ORDCODE | 880-D0830V80-03 |
ADINTMS - Adaptive Interface Machine Direction | M_VLS01_C0800_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-02-10 15:43:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DE0704P_1 |
Hand | R |
MIID - Master Insert Identification | 880-070406H-C-GM |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 07C |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
