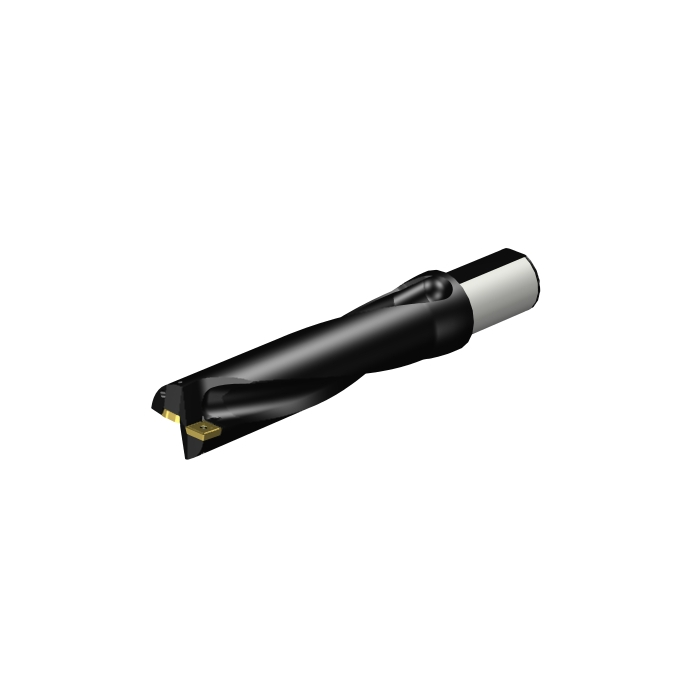

Sandvik Coromant 880-D5600L50-04 CoroDrill® 880 indexable insert drill

R 15 272,00 inc. vat
In stock
SKU
5765537
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 50mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 268.1404mm
BD - Body Diameter 56mm
LB - Body Length 230mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 50001/min
WT - Weight Of Item 3.993kg
OAL - Overall Length 349mm
OHX - Maximum Overhang 268.1404mm
LSC - Clamping Length 80mm
KAPR - Tool Cutting Edge Angle 88deg
GAMO - Orthogonal Rake Angle 5deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 17.9mm
Insert Thickness 5.5mm
H - Shank Height 47.8mm
LU - Usable Length 224.8596mm
ADJLN - Minimum Adjustment Limit 0mm
ADJLX - Maximum Adjustment Limit 1.6mm
DC - Cutting Diameter 56mm
FHA - Flute Helix Angle 17.5deg
ULDR - Usable Length Diameter Ratio 4.01535
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.45mm
PL - Point Length 0.8596mm
LCF - Chip Flute Length 263.2mm
SIG - Point Angle 176deg
ORDCODE 880-D5600L50-04
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_G5000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-04-19 13:58:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DE0906P_1
Hand R
MIID - Master Insert Identification 880-0906W08H-P-GM
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 09P
TCDCON - Connection Diameter Tolerance h6
CICT - Cutting Item Count 1
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
