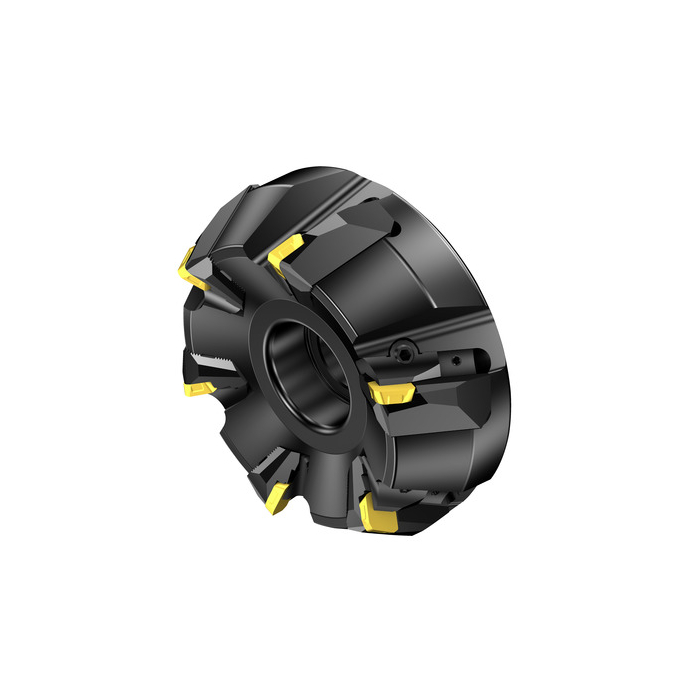

Sandvik Coromant A360-152R38-Z6D19 CoroMill™ 360 face milling cutter

Name: Sandvik Coromant A360-152R38-Z6D19 CoroMill™ 360 face milling cutter
SKU: 5722647
Price: 28977.70 ZAR
Availability: OutOfStock

R 28 977,70 inc. vat

Out of stock

SKU

5722647

CoroMill® 360 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 360 face milling cutter

More Information
DCON - Connection Diameter	38.1mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	80mm
BD - Body Diameter	179mm
LB - Body Length	13mm
TQ - Torque	16Nm
RPMX - Rotational Speed Maximum	8401/min
WT - Weight Of Item	9.794kg
OAL - Overall Length	80mm
OHX - Maximum Overhang	80mm
KAPR - Tool Cutting Edge Angle	60deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	-4.6deg
LAMS - Inclination Angle	18.1deg
IC - Inscribed Circle Diameter	18.94mm
Insert Thickness	6.35mm
APMX - Depth Of Cut Maximum	13mm
DC - Cutting Diameter	152.4mm
DCF - Cutting Diameter Face Contact	152.4mm
GAMF - Radial Rake Angle	-13.12155701deg
GAMP - Axial Rake Angle	13.6490418deg
DCX - Maximum Cutting Diameter	167.4mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	A360-152R38-Z6D19
ADINTMS - Adaptive Interface Machine Direction	M_FDA1B1_S1500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-03-24 01:37:00.000
STDLET - Standard Letter	B
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	W
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MF1906_1
Hand	R
MIID - Master Insert Identification	360R-1906
IFS - Insert Mounting Style Code	1
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	19
CICT - Cutting Item Count	6
ZEFP - Peripheral Effective Cutting Edge Count	6
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
