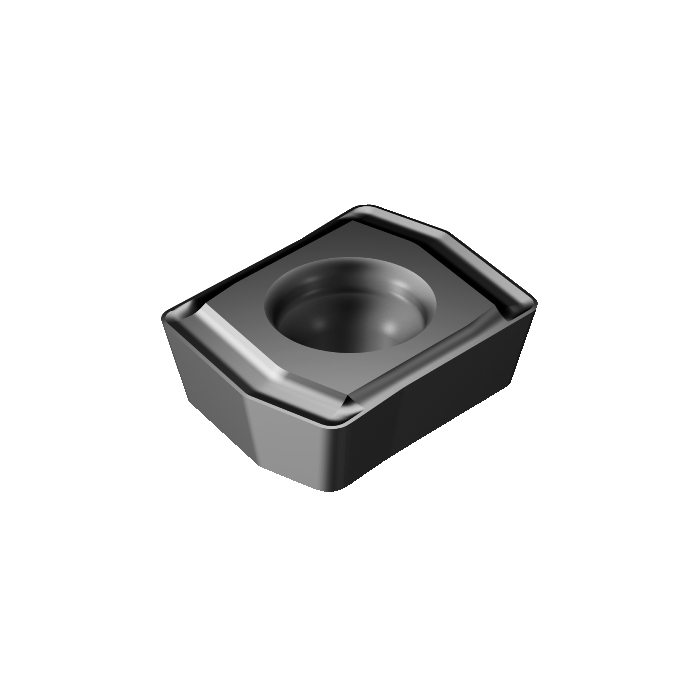

Sandvik Coromant 880-01 02 W04H-P-GR 4324 CoroDrill® 880 insert for drilling
R 243,80
inc. vat
In stock
SKU
6626820
CoroDrill® 880 insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 insert for drilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.3g |
| AN - Clearance Angle Major | 11deg |
| RE - Corner Radius | 0.4mm |
| Insert Thickness | 2.2mm |
| D1 - Fixing Hole Diameter | 2.2mm |
| BN - Face Land Width | 0.08mm |
| GB - Face Land Angle | 5deg |
| BS - Wiper Edge Length | 0.3mm |
| GAN - Insert Rake Angle | 10deg |
| W1 - Insert Width | 4.8mm |
| BSR - Wiper Edge Radius | 1mm |
| ORDCODE | 880-01 02 W04H-P-GR 4324 |
| CHANGEDATE | 2022-09-21 12:30:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 01P |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DE0102P_1 |
| Grade | 4324 |
| COATING | CVD TiCN+Al2O3 |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | GR |
| INSUC - Insert Usage Code | P |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
