R 8 958,50
inc. vat
In stock
SKU
6289908
CoroMill® 419 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days

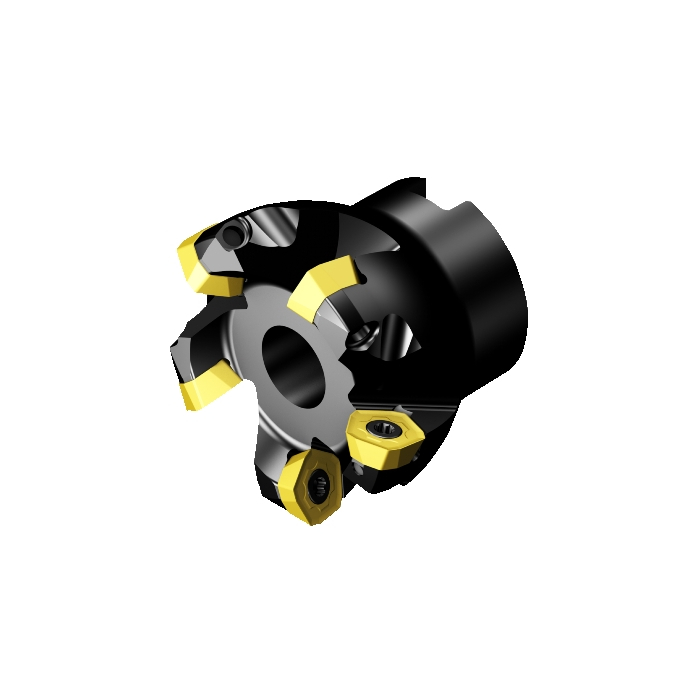

CoroMill® 419 face milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 19.05mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 44.45mm |
TQ - Torque | 5Nm |
RPMX - Rotational Speed Maximum | 173001/min |
WT - Weight Of Item | 0.332kg |
OAL - Overall Length | 44.45mm |
OHX - Maximum Overhang | 44.45mm |
KAPR - Tool Cutting Edge Angle | 19deg |
RMPX - Maximum Ramping Angle | 8deg |
GAMO - Orthogonal Rake Angle | 10deg |
LAMS - Inclination Angle | -3deg |
AN - Clearance Angle Major | 15deg |
IC - Inscribed Circle Diameter | 13.5mm |
Insert Thickness | 5.47mm |
APMX - Depth Of Cut Maximum | 2mm |
DC - Cutting Diameter | 36.1mm |
DCF - Cutting Diameter Face Contact | 36.1mm |
DN - Neck Diameter | 43mm |
GAMF - Radial Rake Angle | 6.10508746deg |
GAMP - Axial Rake Angle | 8.51160807deg |
DCX - Maximum Cutting Diameter | 50.8mm |
AZ - Maximum Plunge Depth | 2mm |
ORDCODE | A419-051R19-14M |
ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_R7500_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:07:00.000 |
STDLET - Standard Letter | A |
STDNO - Standard Number | ISO6462 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NJ1405_1 |
Hand | R |
MIID - Master Insert Identification | 419R-1405 |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | P |
SSC - Insert Seat Size Code | 14 |
CICT - Cutting Item Count | 4 |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
