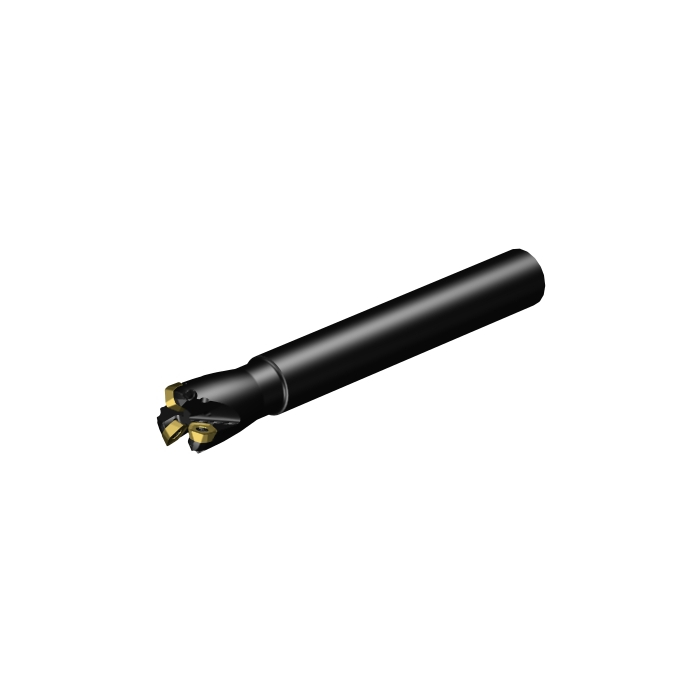

Sandvik Coromant A419-038O32-14M CoroMill™ 419 face milling cutter

Name: Sandvik Coromant A419-038O32-14M CoroMill™ 419 face milling cutter
SKU: 6289906
Price: 7032.25 ZAR
Availability: InStock

R 7 032,25 inc. vat

In stock

SKU

6289906

CoroMill® 419 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 419 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	31.75mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	254mm
BD - Body Diameter	27.9mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	214001/min
WT - Weight Of Item	1.408kg
OAL - Overall Length	254mm
OHX - Maximum Overhang	194mm
LSC - Clamping Length	60mm
KAPR - Tool Cutting Edge Angle	19deg
RMPX - Maximum Ramping Angle	9deg
GAMO - Orthogonal Rake Angle	8deg
LAMS - Inclination Angle	-4deg
AN - Clearance Angle Major	15deg
IC - Inscribed Circle Diameter	13.5mm
Insert Thickness	5.47mm
APMX - Depth Of Cut Maximum	2mm
DC - Cutting Diameter	23.5mm
DCF - Cutting Diameter Face Contact	23.5mm
GAMF - Radial Rake Angle	6.38329273deg
GAMP - Axial Rake Angle	6.28397983deg
DCX - Maximum Cutting Diameter	38.1mm
AZ - Maximum Plunge Depth	2mm
ORDCODE	A419-038O32-14M
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S1250_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 16:17:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NJ1405_1
Hand	R
MIID - Master Insert Identification	419R-1405
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	P
SSC - Insert Seat Size Code	14
TCDCON - Connection Diameter Tolerance	h7
CICT - Cutting Item Count	3
ZEFP - Peripheral Effective Cutting Edge Count	3
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	True
