Sandvik Coromant PTFNL 2525M 16 T-Max™ P shank tool for turning

Name: Sandvik Coromant PTFNL 2525M 16 T-Max™ P shank tool for turning
SKU: 5738892
Price: 1812.40 ZAR
Availability: InStock

R 1 812,40 inc. vat

In stock

SKU

5738892

T-Max® P shank tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® P shank tool for turning

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	150mm
TQ - Torque	2Nm
WT - Weight Of Item	0.722kg
OAL - Overall Length	150mm
OHX - Maximum Overhang	20.2mm
LSC - Clamping Length	129.8mm
KAPR - Tool Cutting Edge Angle	91deg
RMPX - Maximum Ramping Angle	0deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	32mm
HF - Functional Height	25mm
GAMO - Orthogonal Rake Angle	-6deg
LAMS - Inclination Angle	-6deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	9.525mm
RE - Corner Radius	0.79375mm
Insert Thickness	4.7625mm
H - Shank Height	25mm
B - Shank Width	25mm
ORDCODE	PTFNL 2525M 16
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A2525_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-06-13 15:09:00.000
MTP - Clamping Type Code	P
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_TN1604_1
Hand	L

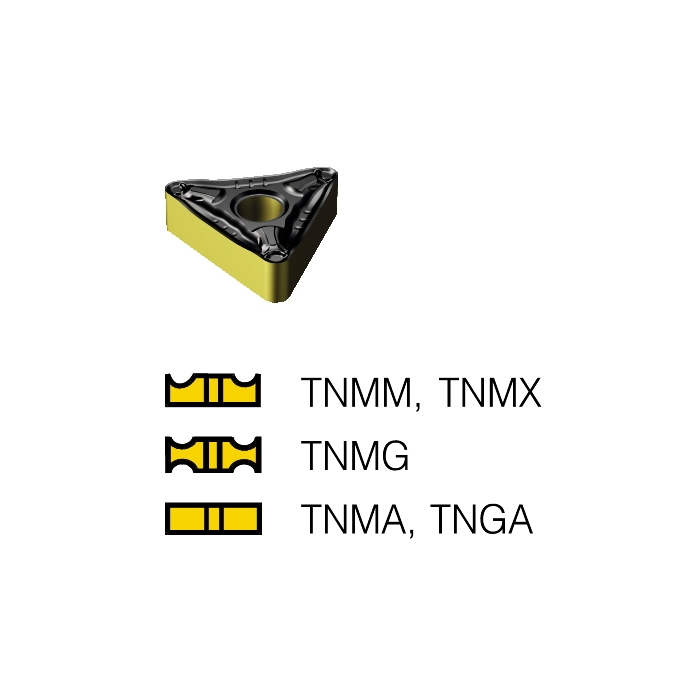

MIID - Master Insert Identification	TNMG 16 04 08
IFS - Insert Mounting Style Code	2
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
